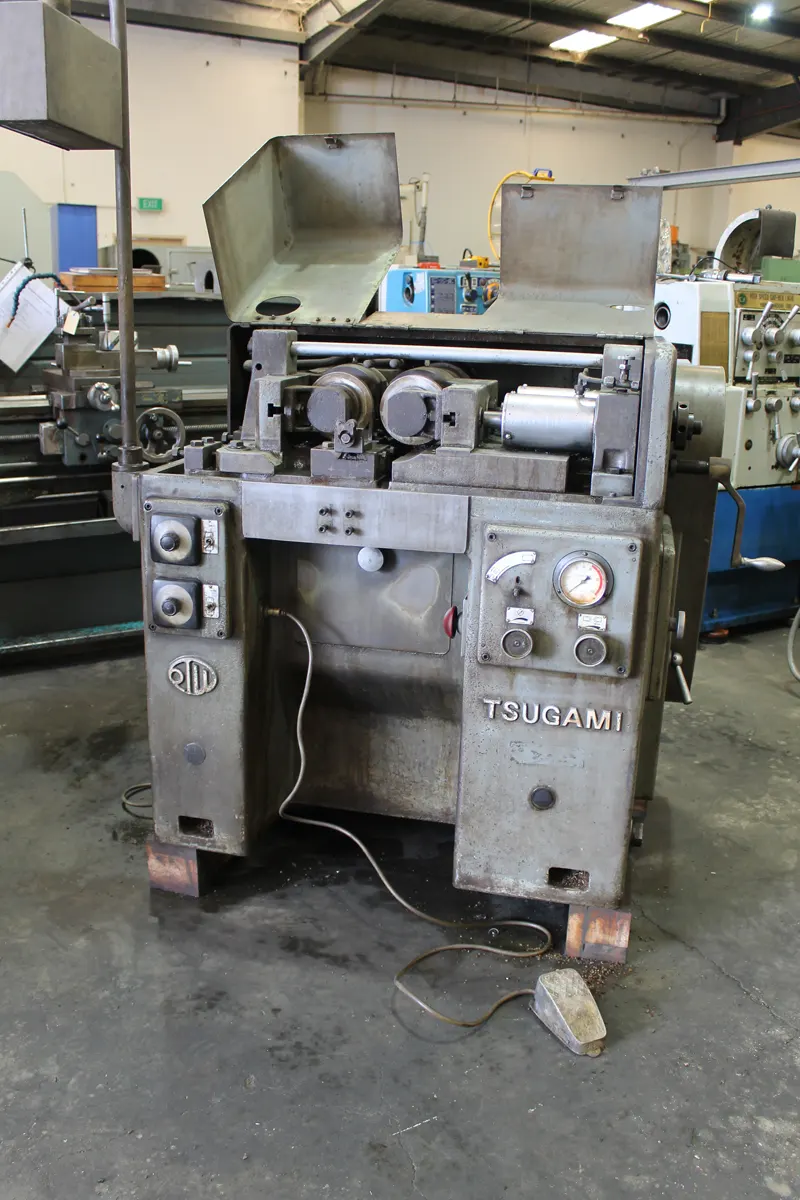

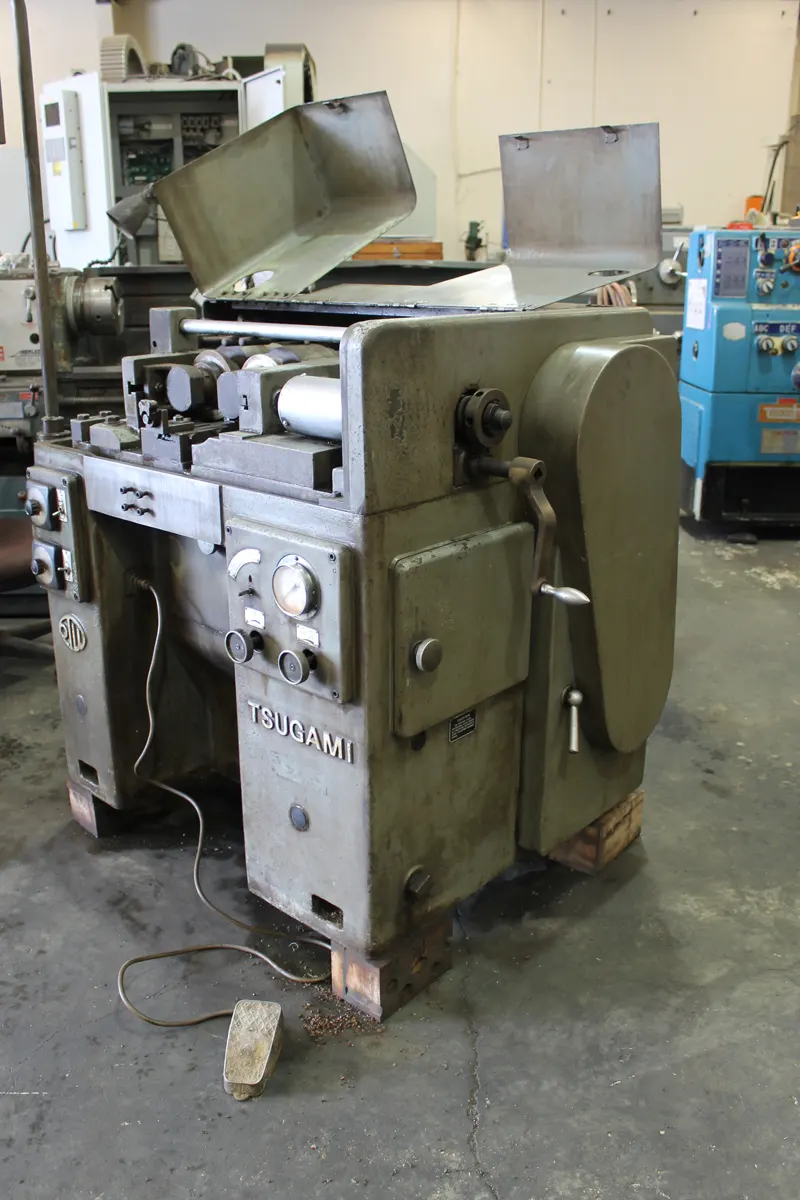

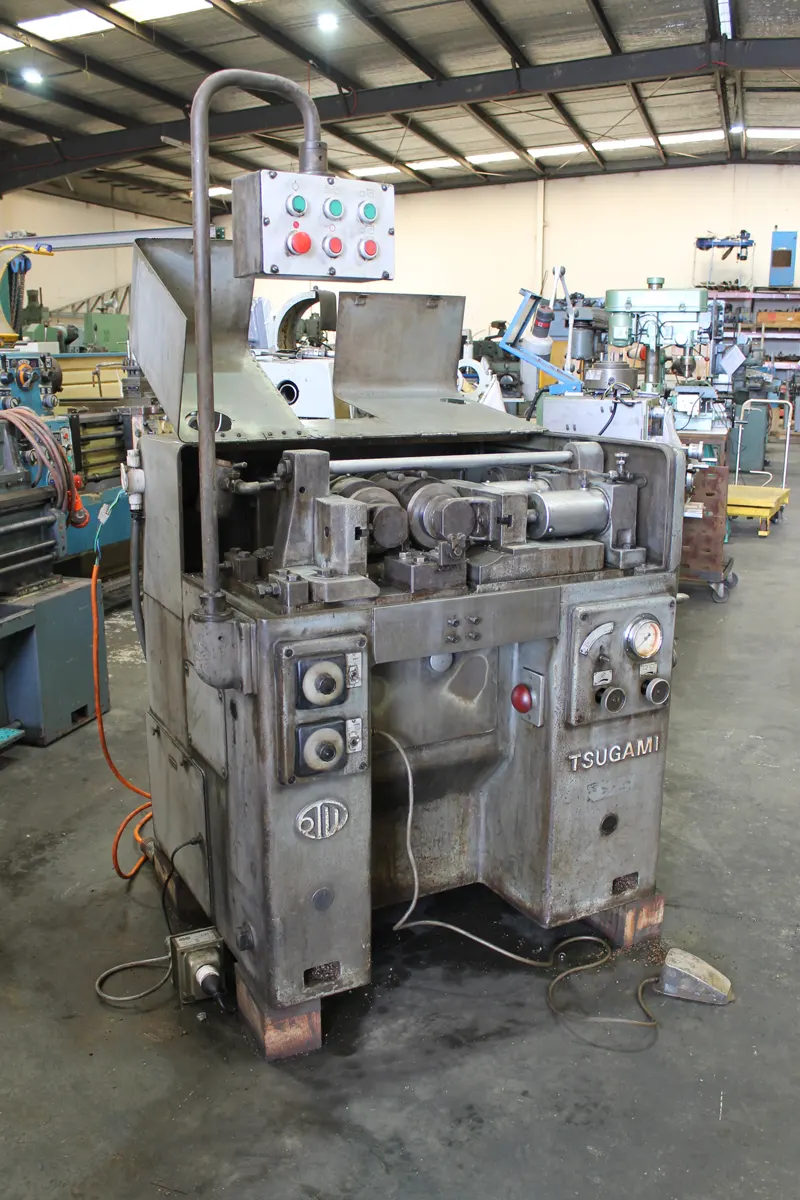

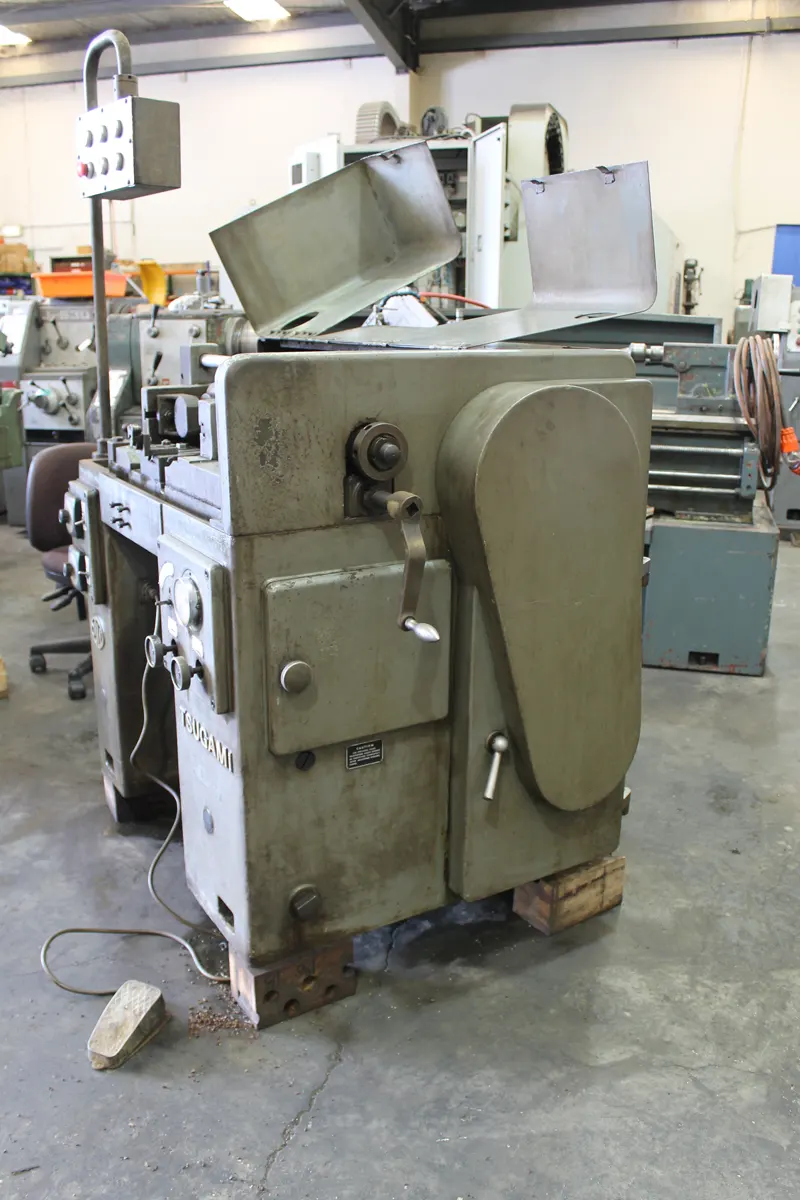

We have for sale a Tsugami T-ROL6 Thread Rolling Machine
Stock #4031
This machine is suitable for mass production of threads, worms, knurls and serrations
Specifications
Work Range
- Max Thread Pitch 2.5mm (10TPI)
- Max Modul (diametrical pitch) 1.5m (16DP)
- Max Roll Length 60mm (21/4”)
- Max Diameter 45mm (1-3/4″)
- Max Elongation 8%
Roll Spindle Speeds 38rpm and 58rpm @ 50Hz

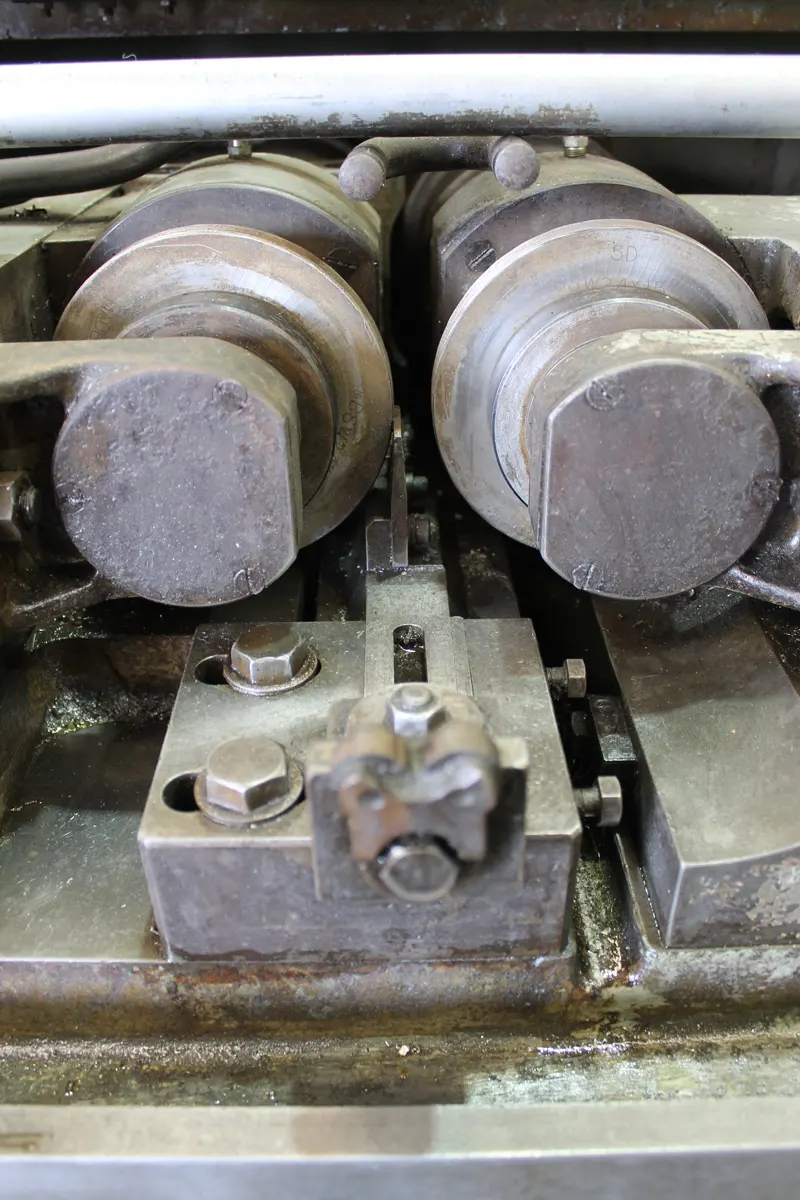

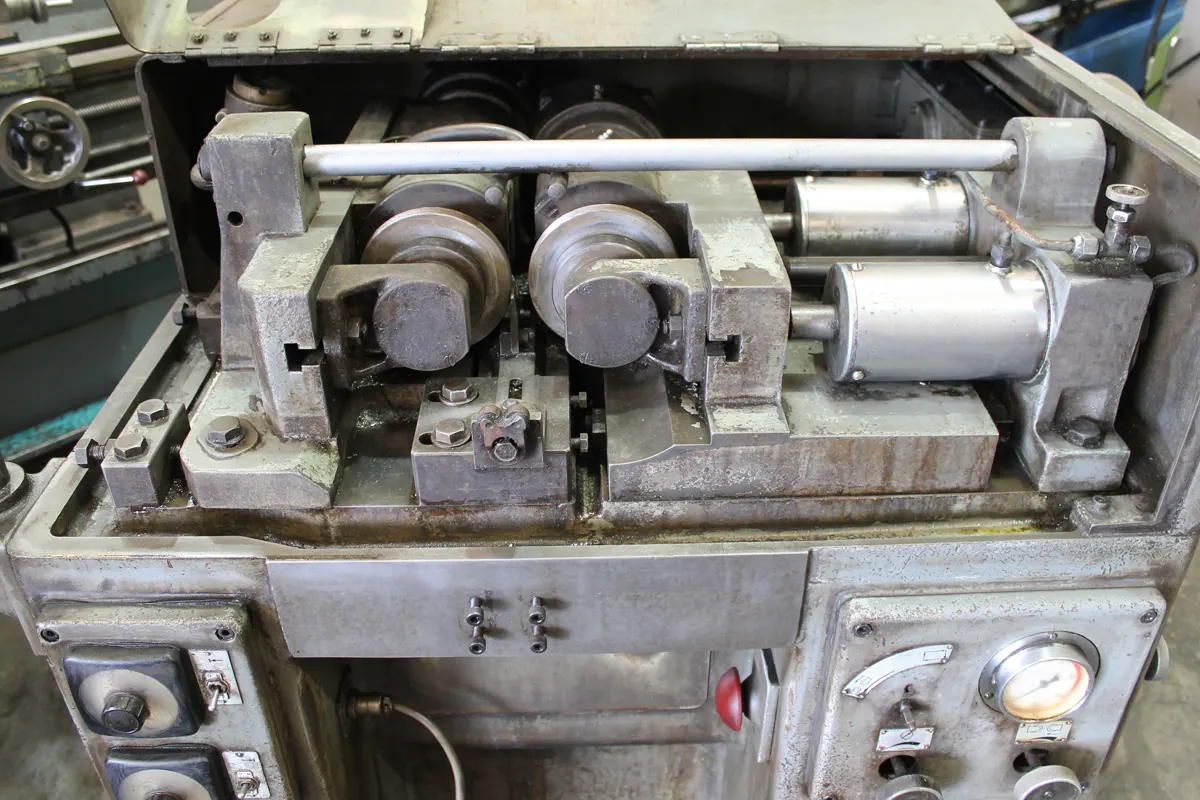

Roll Dies
- Max Diameter 150mm
- Bore Diameter 54mm
- Roll Width 40,60mm
Motors
- For Roll Spindle 2hp 1,500rpm
- For Hydraulic Pump 1 hp 1,500rpm
- For Coolant Pump 0.2hp 3,000rpm
- Dimensions for Transport 1,130 x 905 x 1,015mm (High)
- Weight 1,230kg
- Please click here for a printable pdf report & price (opens in new tab)
Accessories
Comes with the following sets of thread Rolls
- 3/16 BSW 24 x 60
- 1/2 BSW 12 x 60
- 1/4 UNC 20 x 60
- 5/16 UNC 18 x 60
- 3/8 UNC 16 x 60
- M6 x 1.0mm
- M8 x 1.25mm
- M10 x 1.5mm
We recommend customers pay us a visit to inspect machinery, where we are happy to test run machinery in our warehouse, that way it gives you peace of mind that the machine will do your job prior to purchase.
This centre lathe is in our warehouse so please feel free to call us on 03-9720-3922 for more information & price or pop in to inspect the machine at your convenience.
We are always interested in purchasing metalworking machinery & surplus equipment. Should you be looking at Downsizing, Relocating, Closing Down or have machinery that is surplus to requirements, we would appreciate the opportunity to assist in any way we can.
We would like to extend a note to all prospective customers. We are happy to provide details of freight companies that transport machines anywhere in Australia or worldwide. However, we want to remind customers that the machines are not insured during transport by either the transport companies or Newmac Equipment. We strongly advise that customers speak with their usual insurance company to take out transport insurance.
Slide show below can be paused by hovering the mouse cursor over the current photo. It will resume when the cursor is moved off the photo
