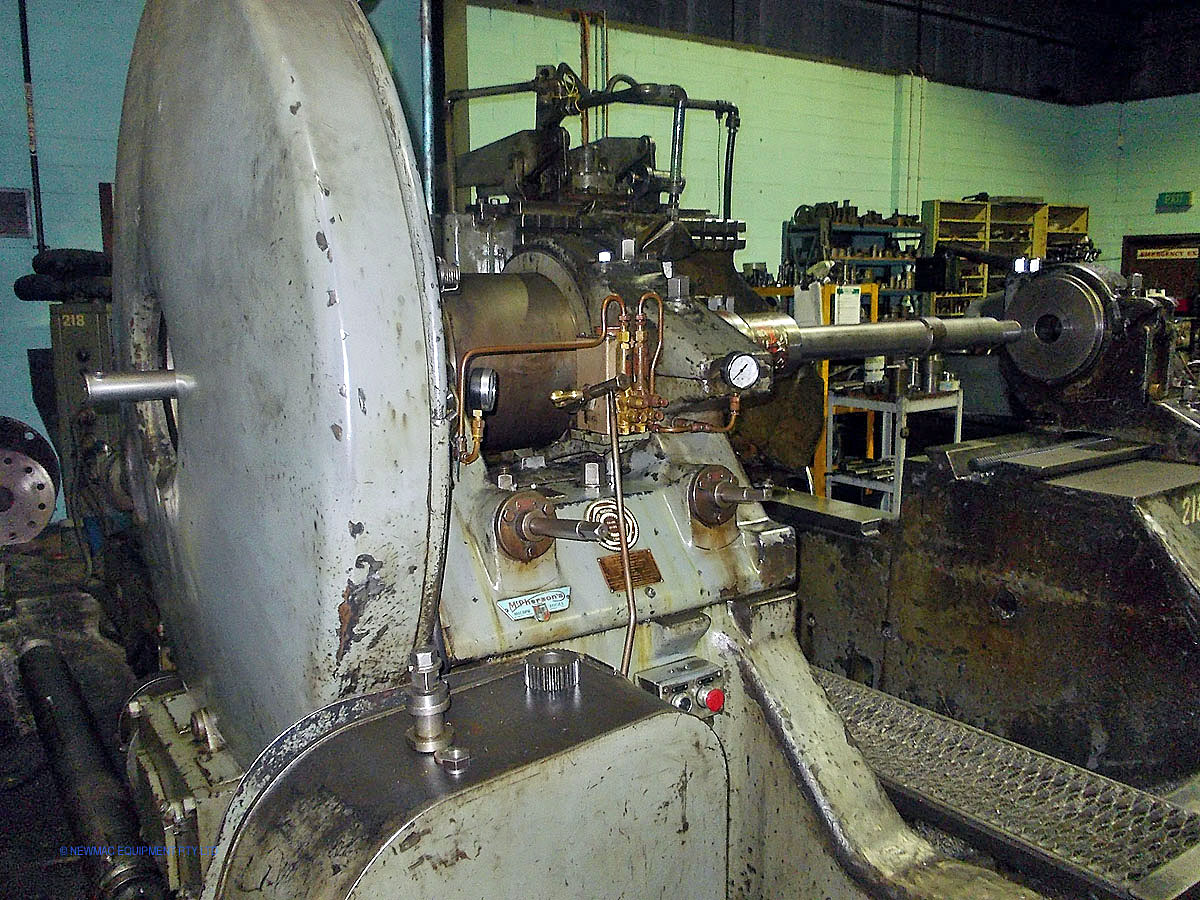

Sunderland 27SDH gear planner (415V)

We have a very good used condition, Sunderland model 27SDH gear planner for sale

Specification & info as follows:

The machine is very well equipped –

Max spur gear dia 2134mm

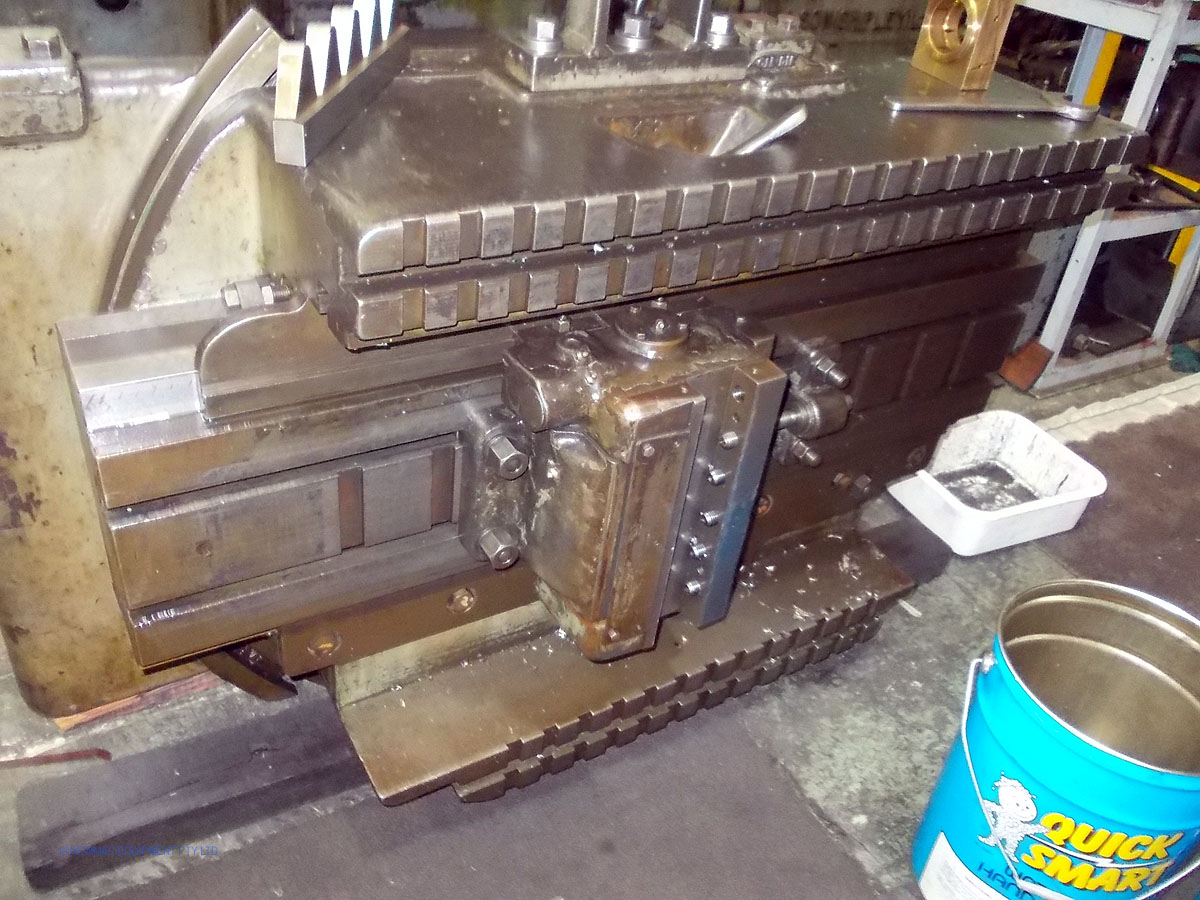

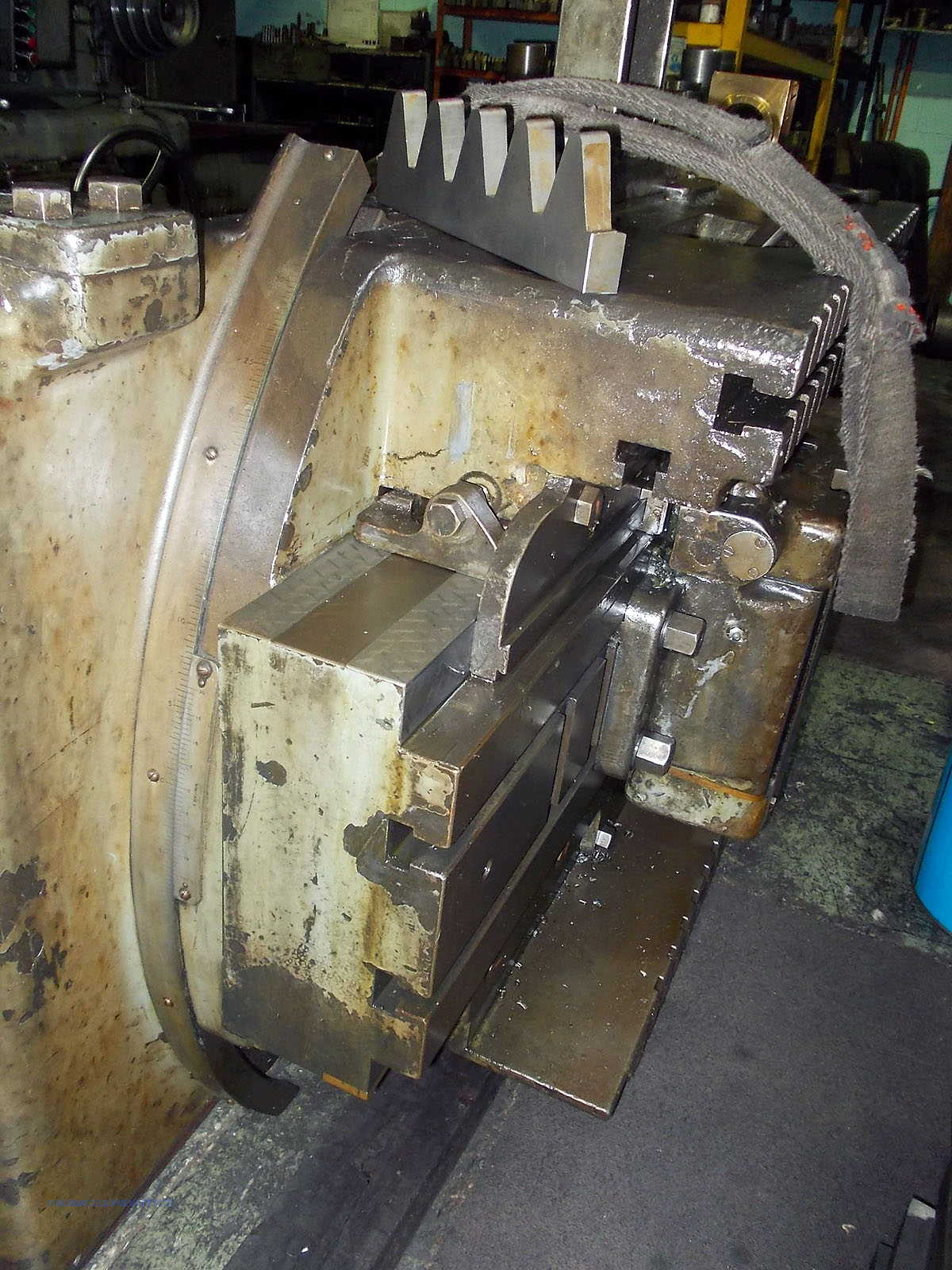

1. One head/slide for cutting Spur/single helical gears – max face width 380mm (15”) / max pitch 1 DP (25 Mod)
a. For single helical gears the max. helical angle is + or – 30 deg.
2. One head/slide for double helical gears – max face width 380mm (15”) / max pitch 1.5 DP ( 16 Mod) / helical angle 30 deg.
3. Two cutter heads – single acting and double acting
4. Rim/work steady rests for cutting large diameter gears

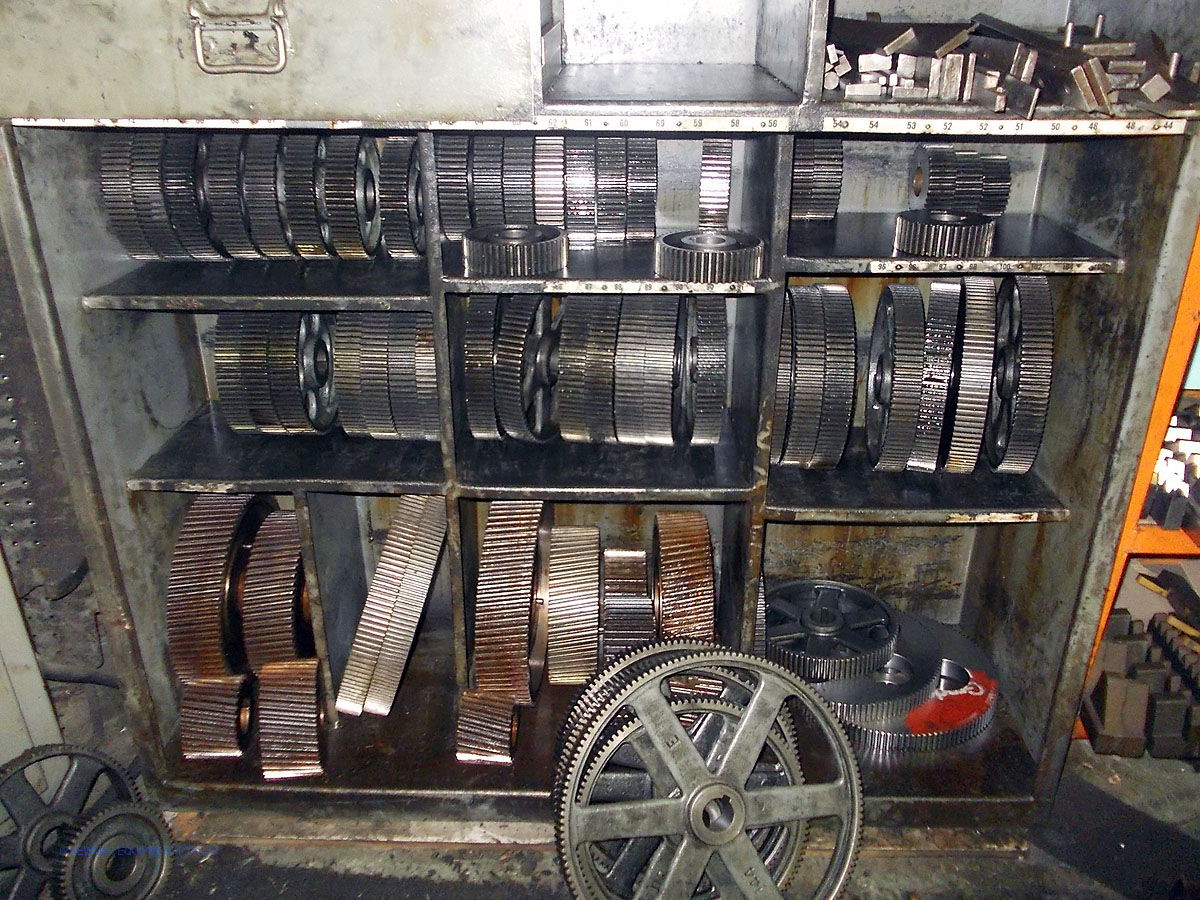

5. Change gears – full set (approx. 60 gears)
6. Speed gears (for different cutting speeds) – 5 sets
7. Cutting trips – 5 or 6 for different length faces (up to 15” face)
8. 4” and 6” work arbours with bushes for outer work support
9. Operation manual and work charts (for spurs/helicals and double helical gears)

Machine serial number: BB471 – it was built in the mid 1960’s



  • Click here for a pdf document with full specifications



Call us on 03 9720 3922 for more information. Please note this machine is not in our warehouse, but we are happy to arrange an appointment for inspection of the machine if required.

Slide show below can be paused by hovering the mouse cursor over the current photo. It will resume when the cursor is moved off the photo
