Ofmer are a well respected Italian Manufacturer of Concrete Reinforcement cutting and bending equipment used on construction sites, precast fabrication companies and rebar manufacturing facilities.

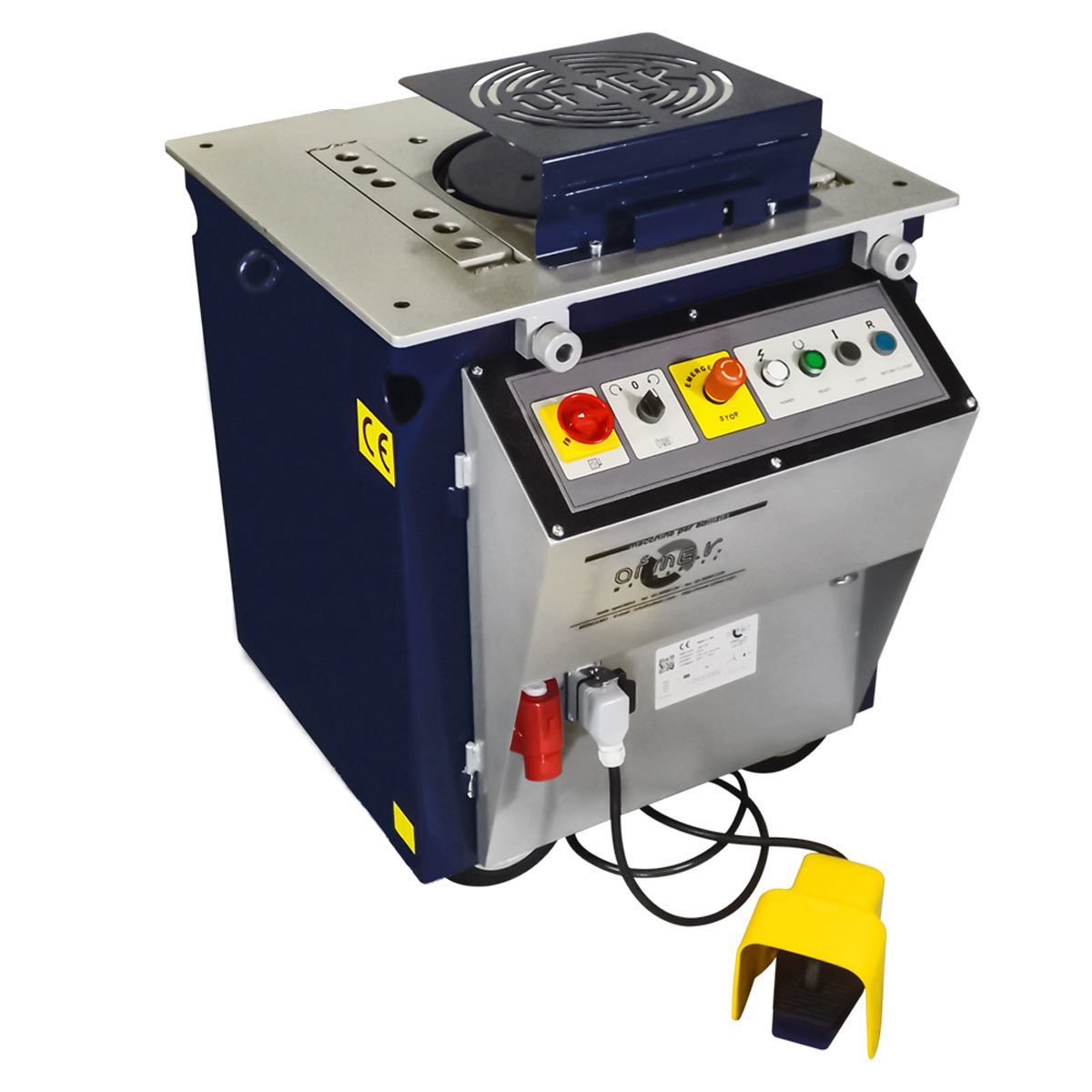

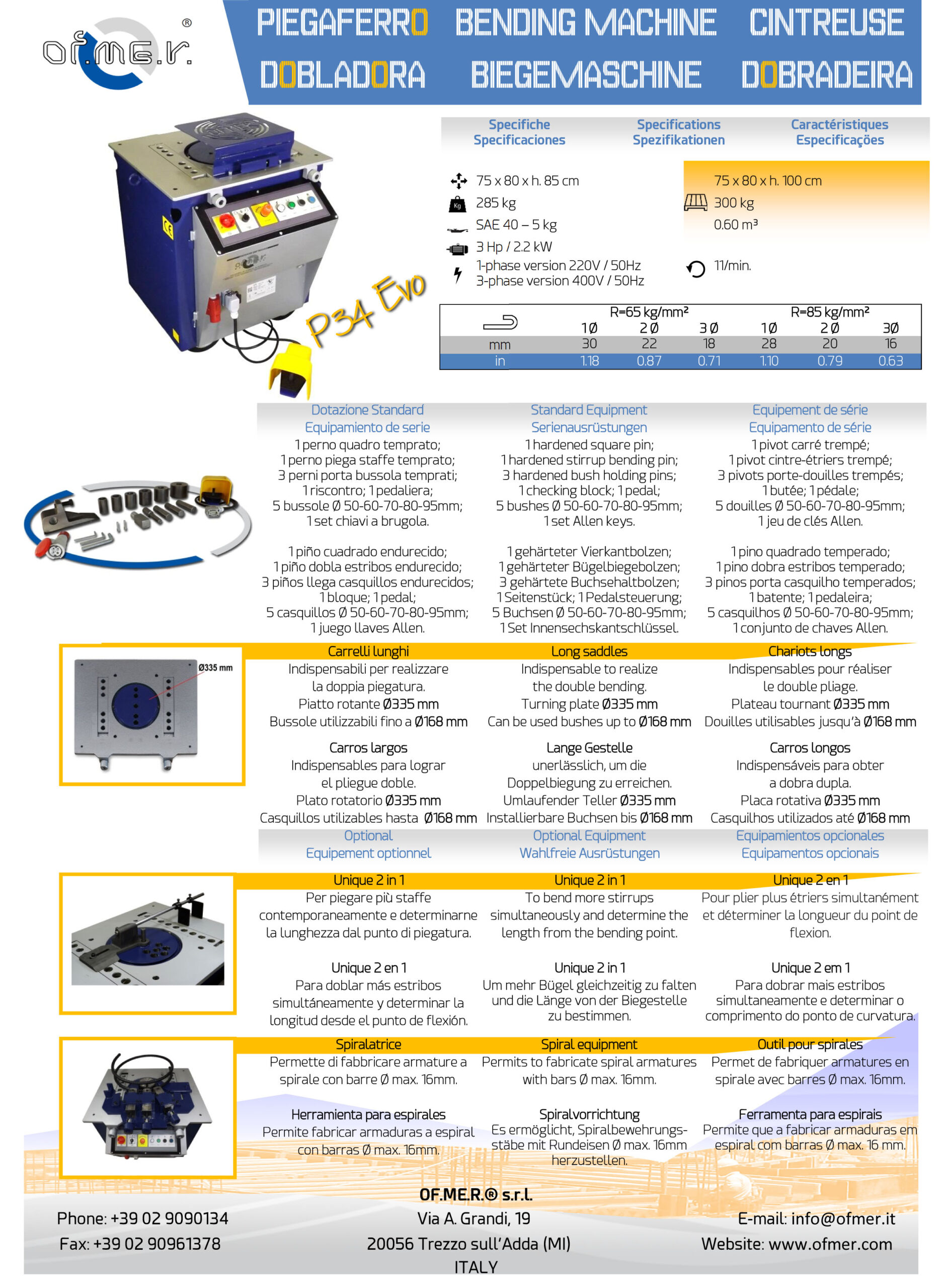

We are pleased to offer the P34 EVO Rebar bending Machine, specification are as follows:
- Machine Size 75cm x 80cm x 85cm
- Machine Weight 285kg
- Drive Motor 3hp/2.2kw
- Available in single phase 220V 50hz and 3 phase 415v 50hz
- Bending Capacity R= 65kg/mm²
- Single Bar ∅30mm Diameter
- Two Bars ∅22mm Diameter
- Three Bars ∅18mm Diameter
- Bending Capacity R= 85kg/mm²
- Single Bar 28mm Diameter
- Two Bars 20mm Diameter
- Three Bars∅16mm Diameter
- One hardened square pin
- One Stirrup bending pin
- Three hardened bush holding pins
- One Checking Block
- 1 Foot Pedal
- 5 Bushes 50, 60, 70, 80, 95mm Diameter
- 1 Set of Allen Keys
Slide show below can be paused by hovering the mouse cursor over the current photo. It will resume when the cursor is moved off the photo. We also have a video of these machines at the bottom of the page.
