Mori Seiki MV40A Twin Pallet Vertical Machining Centre for sale
Stock # 4117
About this machine

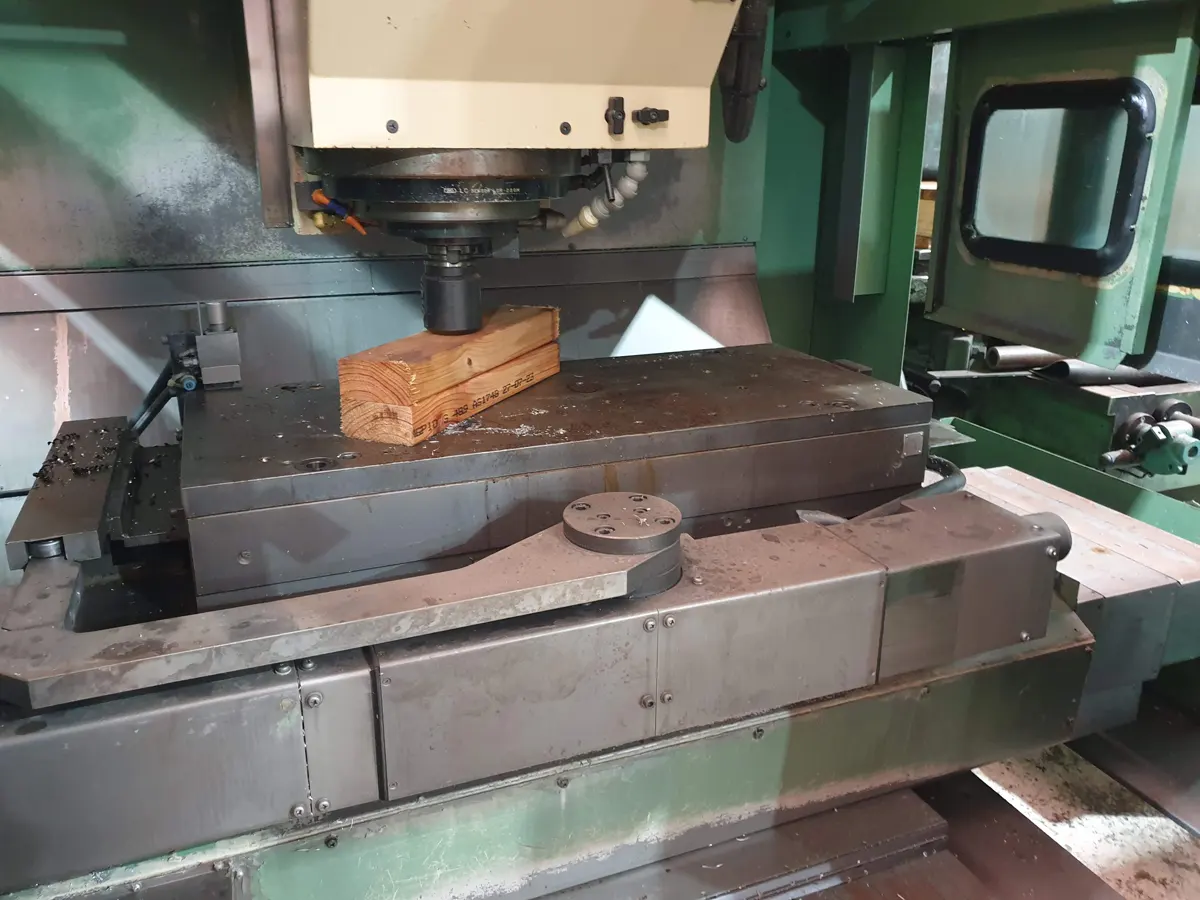

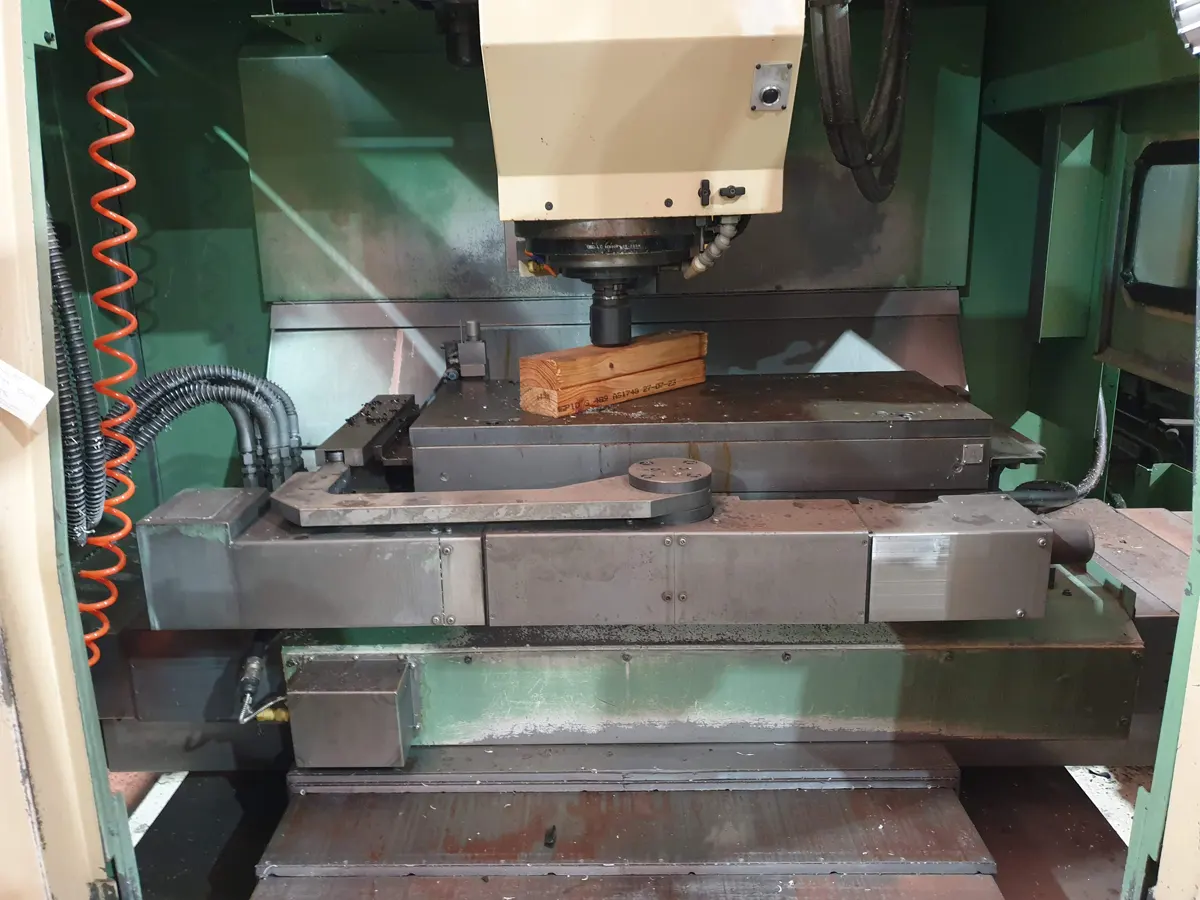

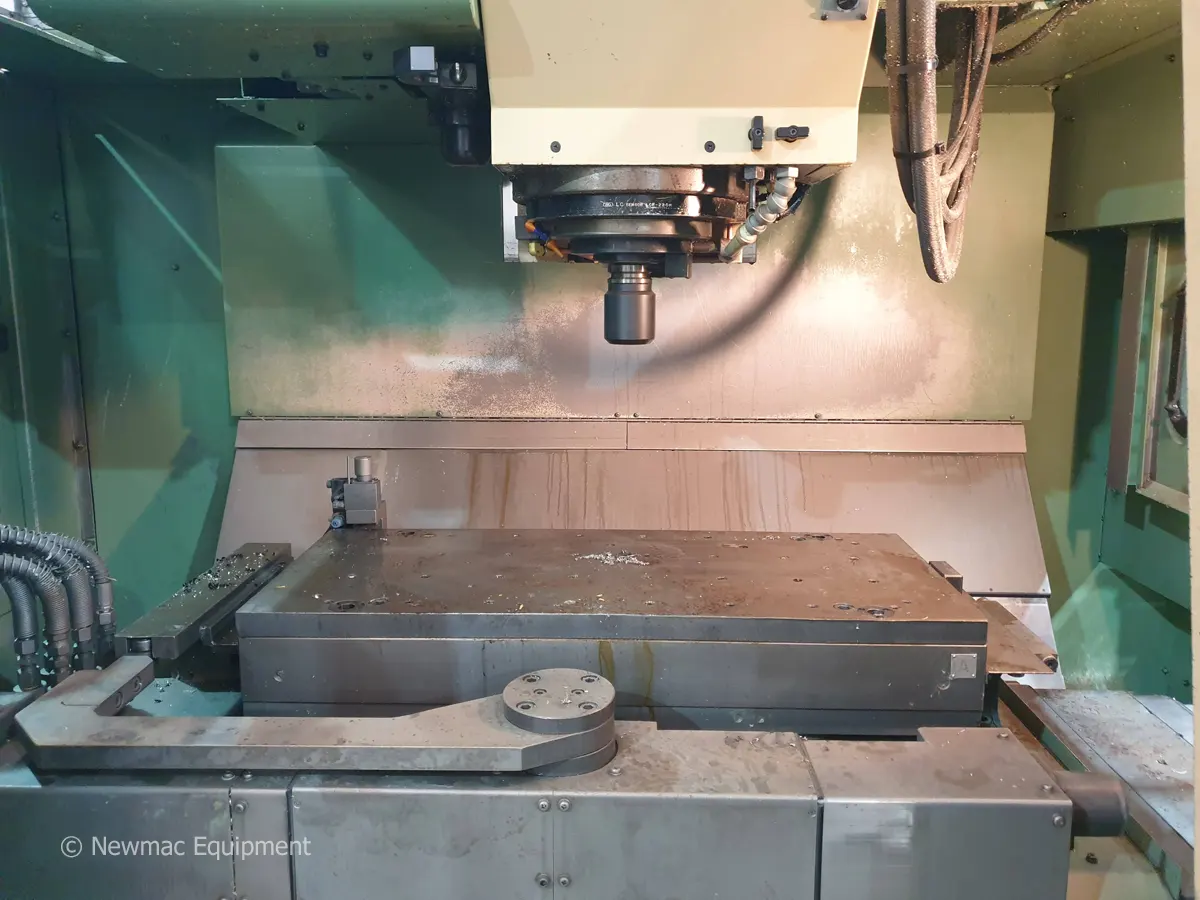

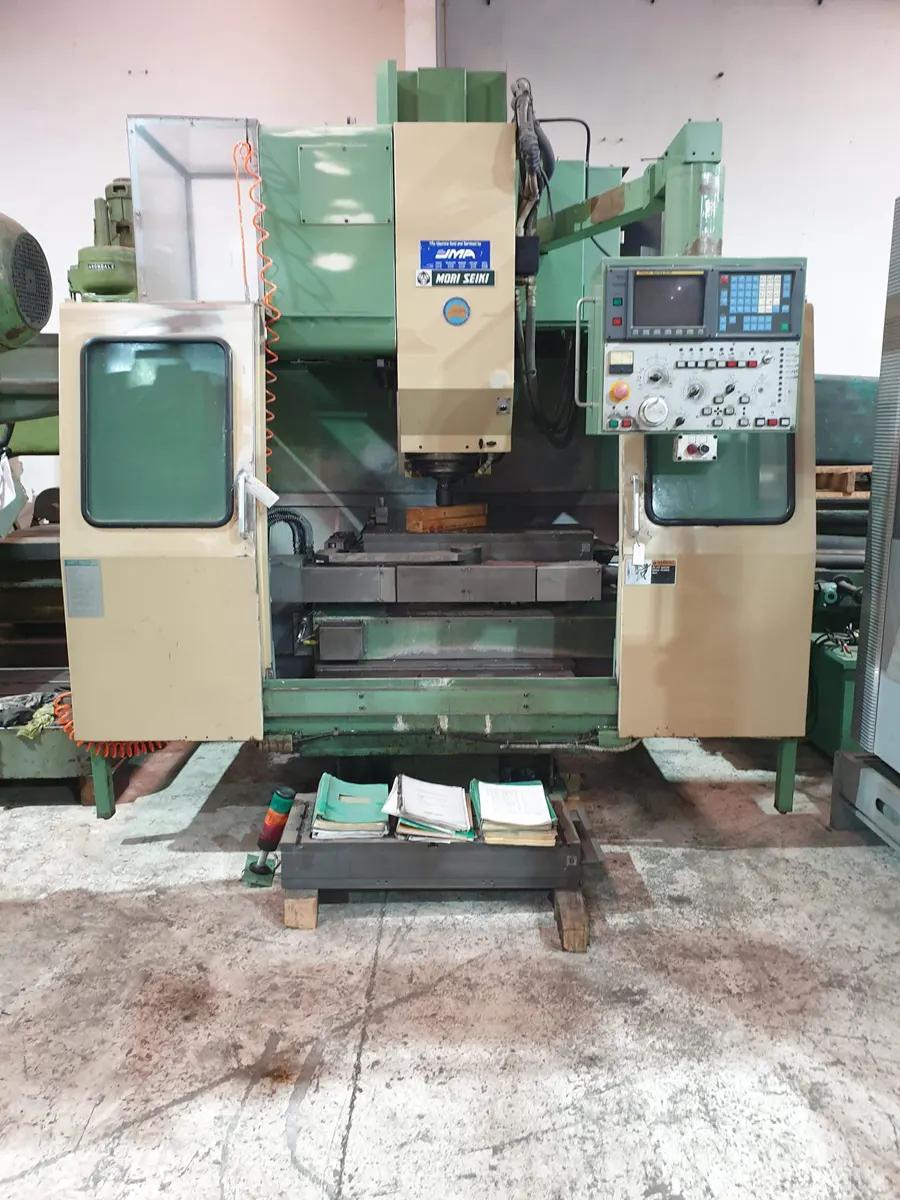

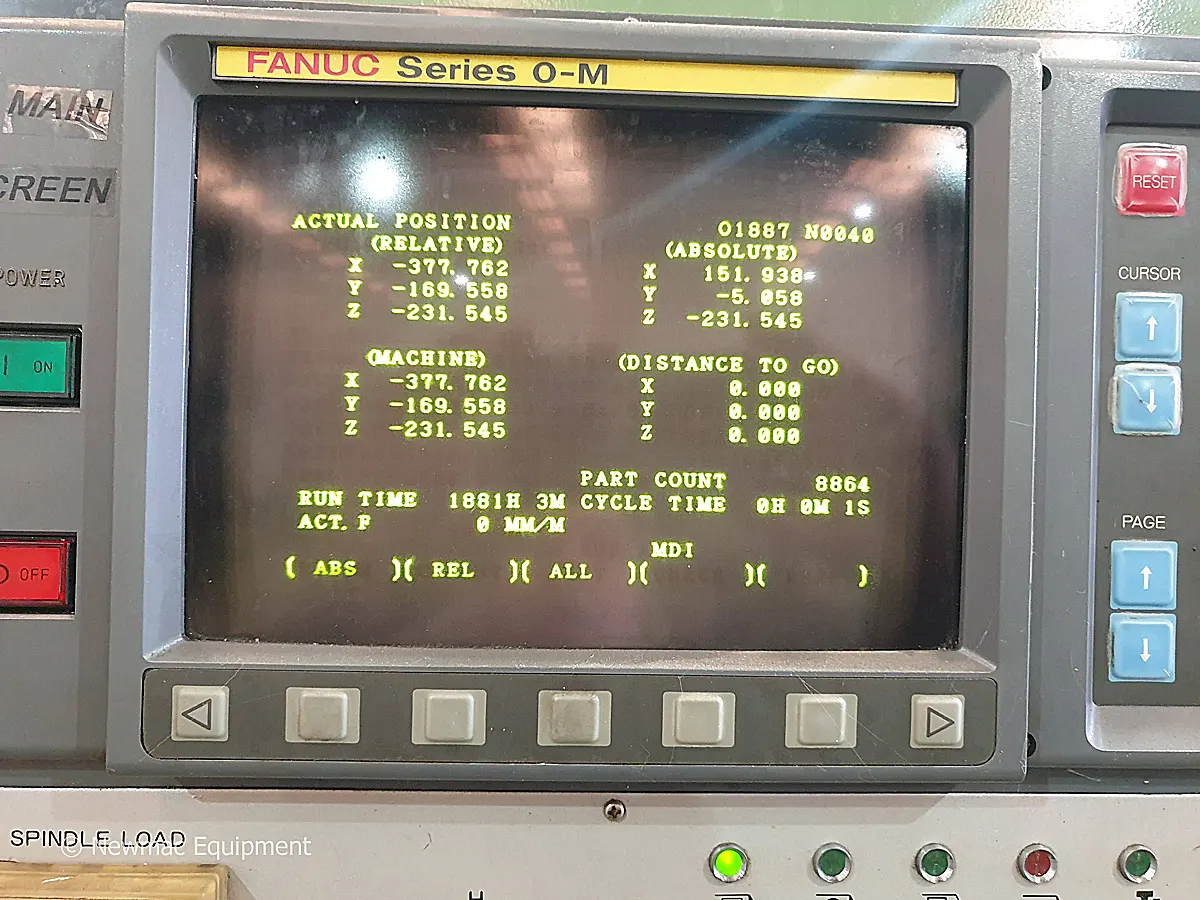

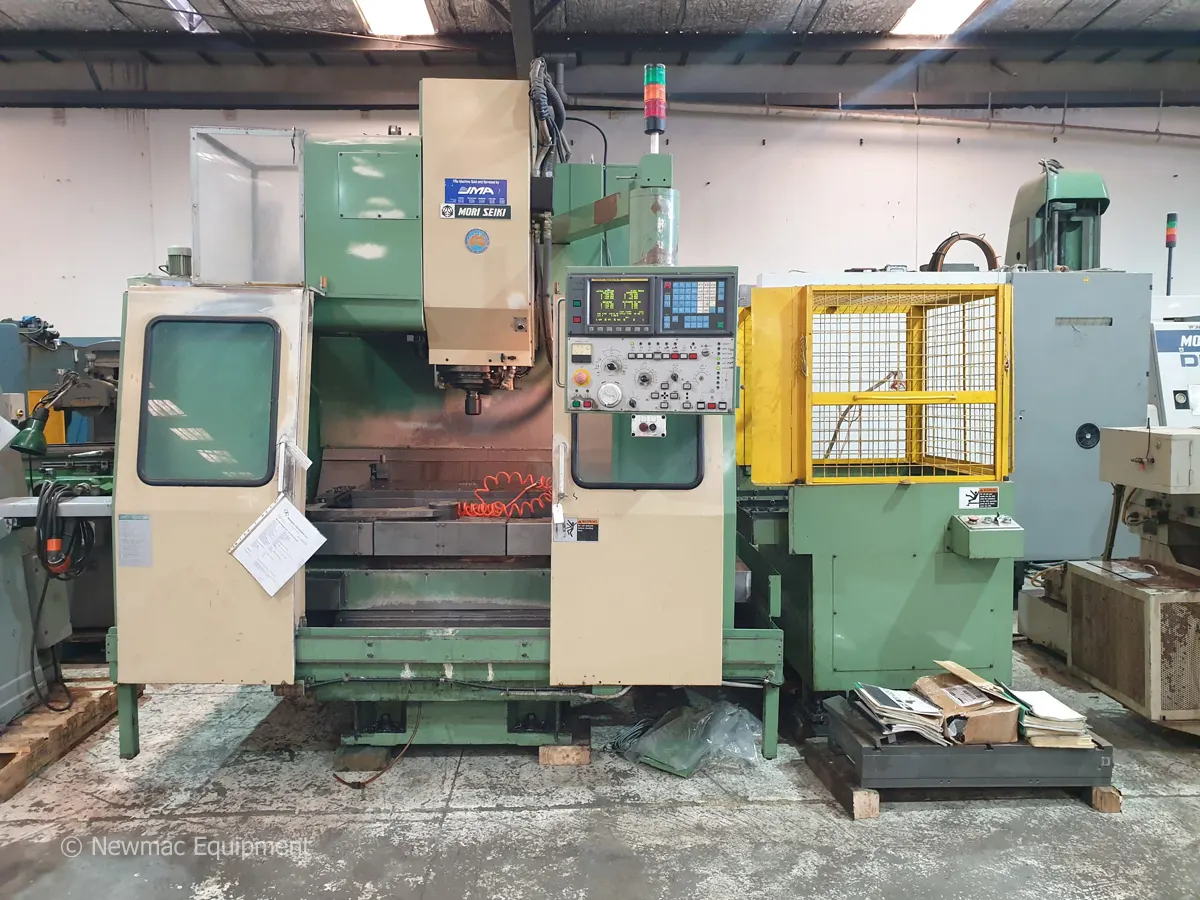

This Mori Seiki MV40A is Japanese-built, BT40 taper, with an 8,000rpm spindle and a Fanuc Series OM control. It’s set up and ready to demonstrate running in our Bayswater North warehouse (pallet changer excepted — see note below).
Technical Data Snapshot
- Made in Japan
- Pallet size 380mm x 700mm
- X/Y/Z travel 600mm x 410mm x 510mm

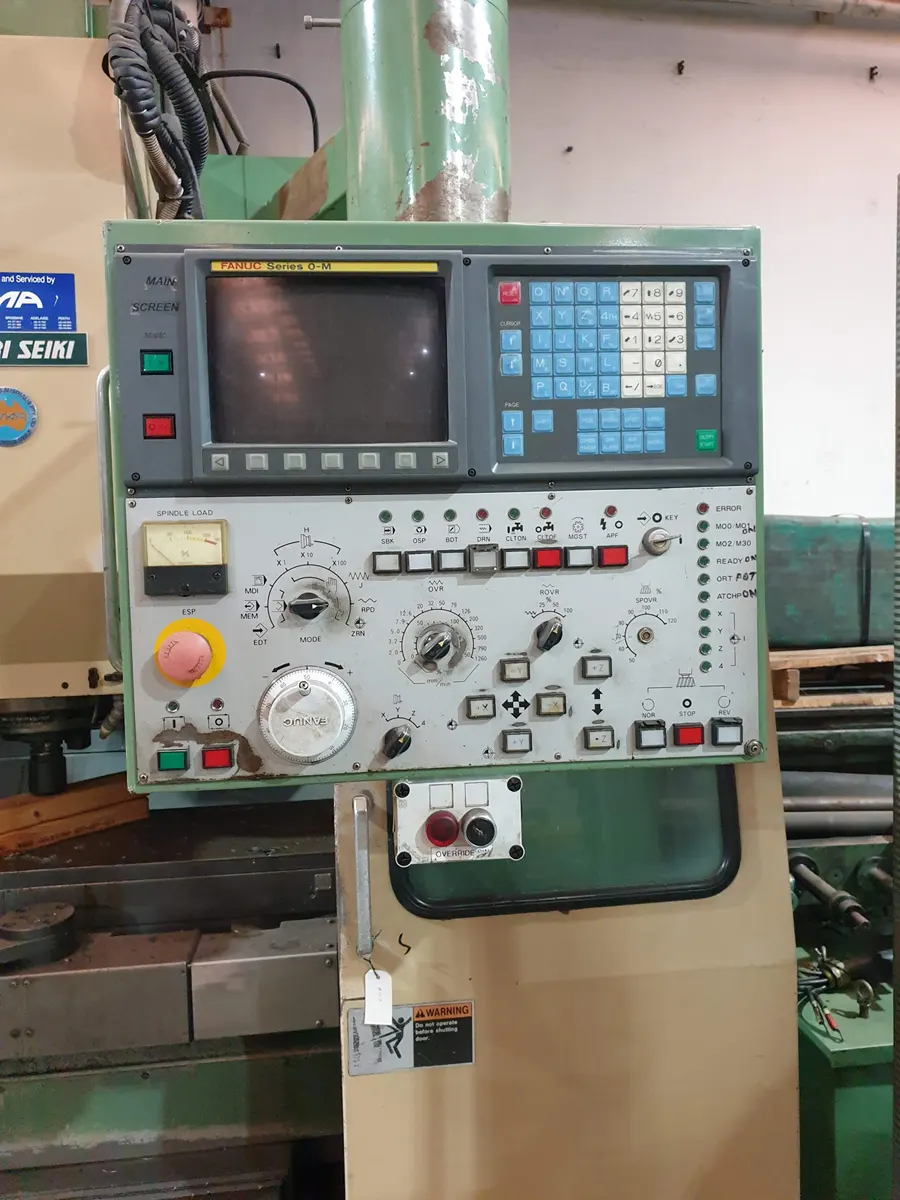

- Control Type Fanuc Series OM
- Max spindle speed 8,000rpm
- Spindle taper BT 40
- Max programmable Feed Rate 5m/min X/Y/Z
- Rapid Feed Rate 20m/min X/Y
- Rapid Feed Rate 15m/min Z
- Max Pallet Load 300kgs
- Number of tools that can be held in the tool carousel 20
- Spindle Motor Hp/Kw 5.5hp, 7.5kw 30 min rating
- Flood type coolant System
- Machine power requirements 3 phase 415 volt
- Stroke for pallet 947.7mm
- Pallet Change Time 12 seconds
- Machine Dimensions for Transport, including control cabinet 2,500m wide x 2,260mm front to back x 2,650 mm high
- Machine Weight Approx. 6.5 tonne

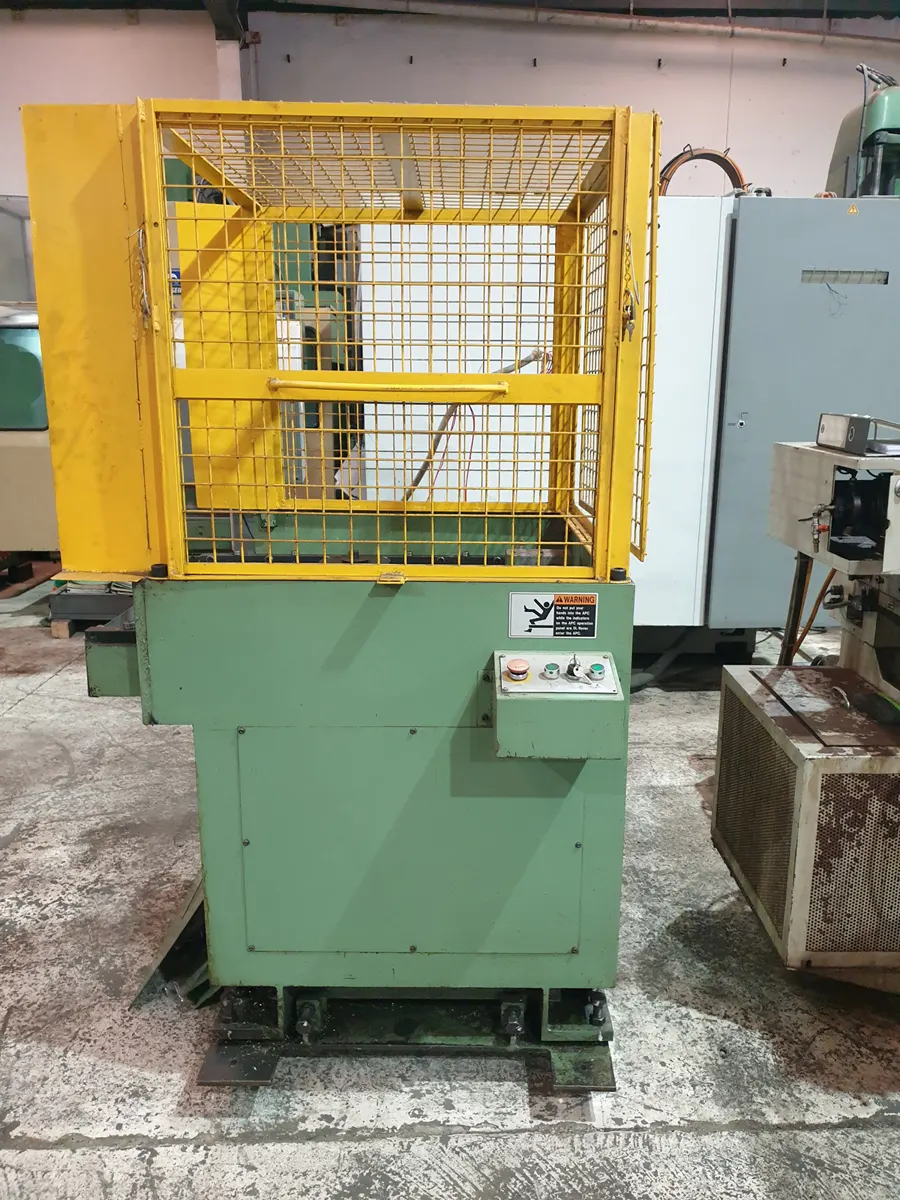

- Pallet Changer Dimensions for Transport 1,030mm x 1,110mm x 1,900mm High
- Pallet Changer Weight 550kg
- Pallet Dimensions 1,000mm x 390mm x 150mm High
- Transformer Dimensions for Transport 530mm x 650mm x 520mm High
- Transformer Weight 300kgs
Accessories
- 10 x BT40 Tooling
- 2 x Pallets
- Spindle Chiller
- Coolant System
- Worklight
- Transformer

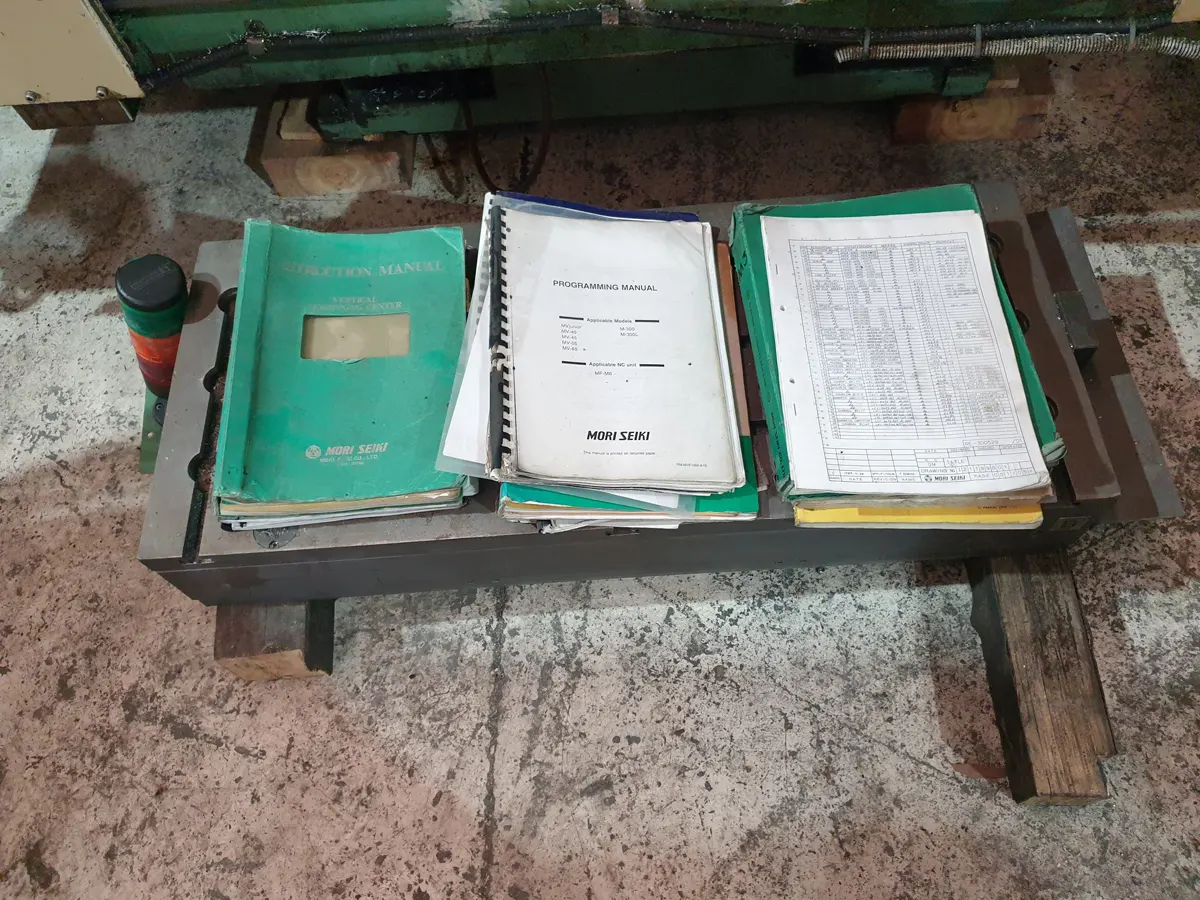

- Machine Manuals
Please click here for printable PDF and price (opens in new tab)

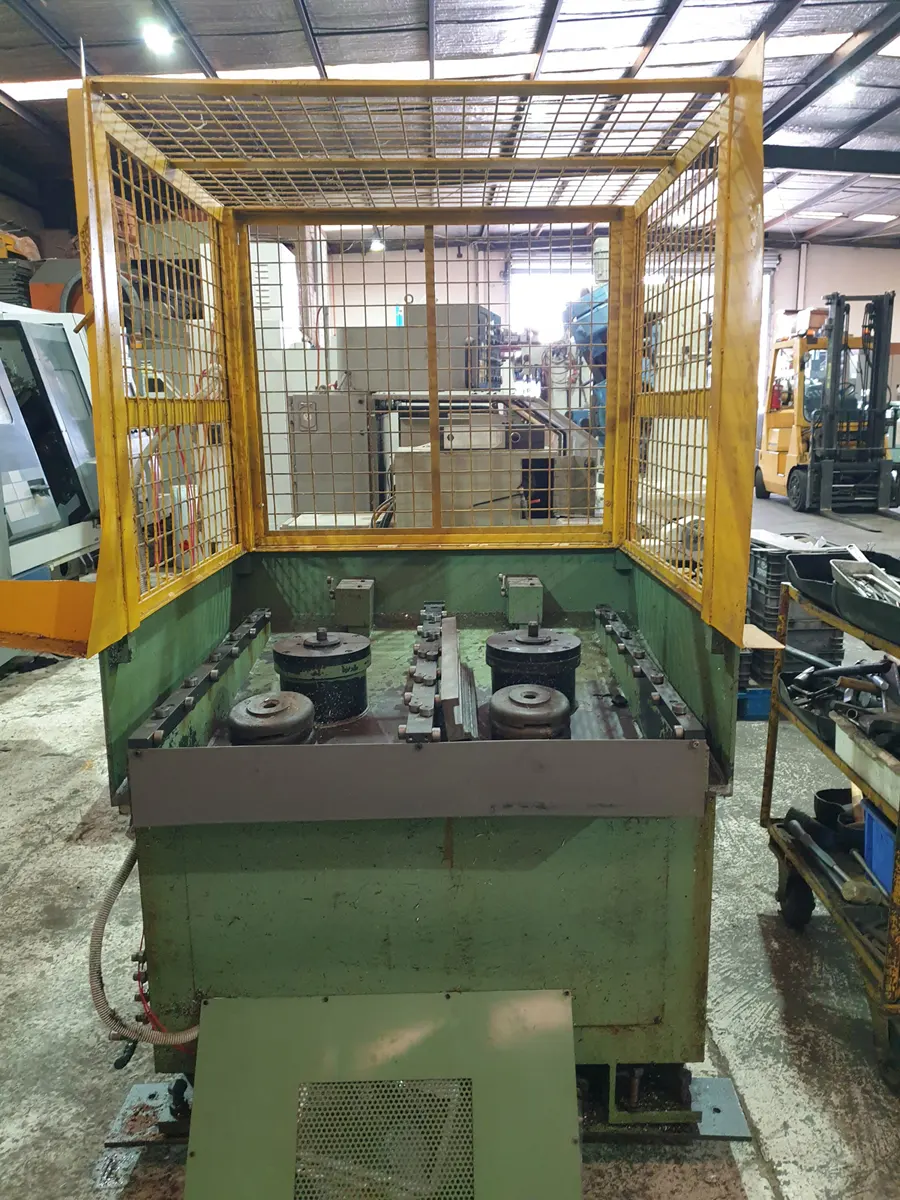

We can run the machine running in our warehouse. The pallet changer itself has not been set up for demonstration — it was working before the machine was decommissioned and moved to our warehouse,
3 Phase Power
Please note this machine does not include a plug. When 3 phase machinery is decommissioned from industrial use, it is often disconnected directly from a switchboard by an electrician, meaning no plug is fitted and in some cases the cable may also be absent. As a machinery dealer, we are not electricians and are unable to supply or fit plugs. Buyers will need to arrange connection through a licensed electrician.
This CNC Milling Machine is in our warehouse so please feel free to call us on 03-9720-3922 for more information & price or pop in to inspect the machine at your convenience.
We are always interested in purchasing metalworking machinery & surplus equipment. Should you be looking at Downsizing, Relocating, Closing Down or having machinery surplus to requirements, we would appreciate the opportunity to assist in any way we can.
We would like to extend a note to all prospective customers. We are happy to provide details of freight companies that transport machines anywhere in Australia or worldwide. However, we want to remind customers that the machines are not insured during transport by either the transport companies or Newmac Equipment. We strongly advise that customers speak with their usual insurance company to take out transport insurance.
