Ever wondered what spindle nose your lathe actually has?
Most people are familiar with the Camlock (D1) system, as it’s one of the more commonly seen setups on modern lathes. But there are several other spindle mounting systems out there.
You will still come across things like:
• Long taper (Type L) spindle noses (generally found on older lathes)
• Short taper with bayonet-style fixing
• A-type spindle mounts (A1 / A2 – bolt-on type)
All of these systems use a taper to locate the chuck or faceplate on the spindle. Where they differ is in how the mounting is pulled into the taper and secured in place.
Depending on the design, this may be done using a locking ring, cam pins, studs, or bolts.
The important thing to be aware of is that these systems are not interchangeable without the correct backplate or adaptor. Knowing exactly what spindle nose you have is critical when buying tooling or machinery.
Please see the details below for your reference.
Long Taper type L

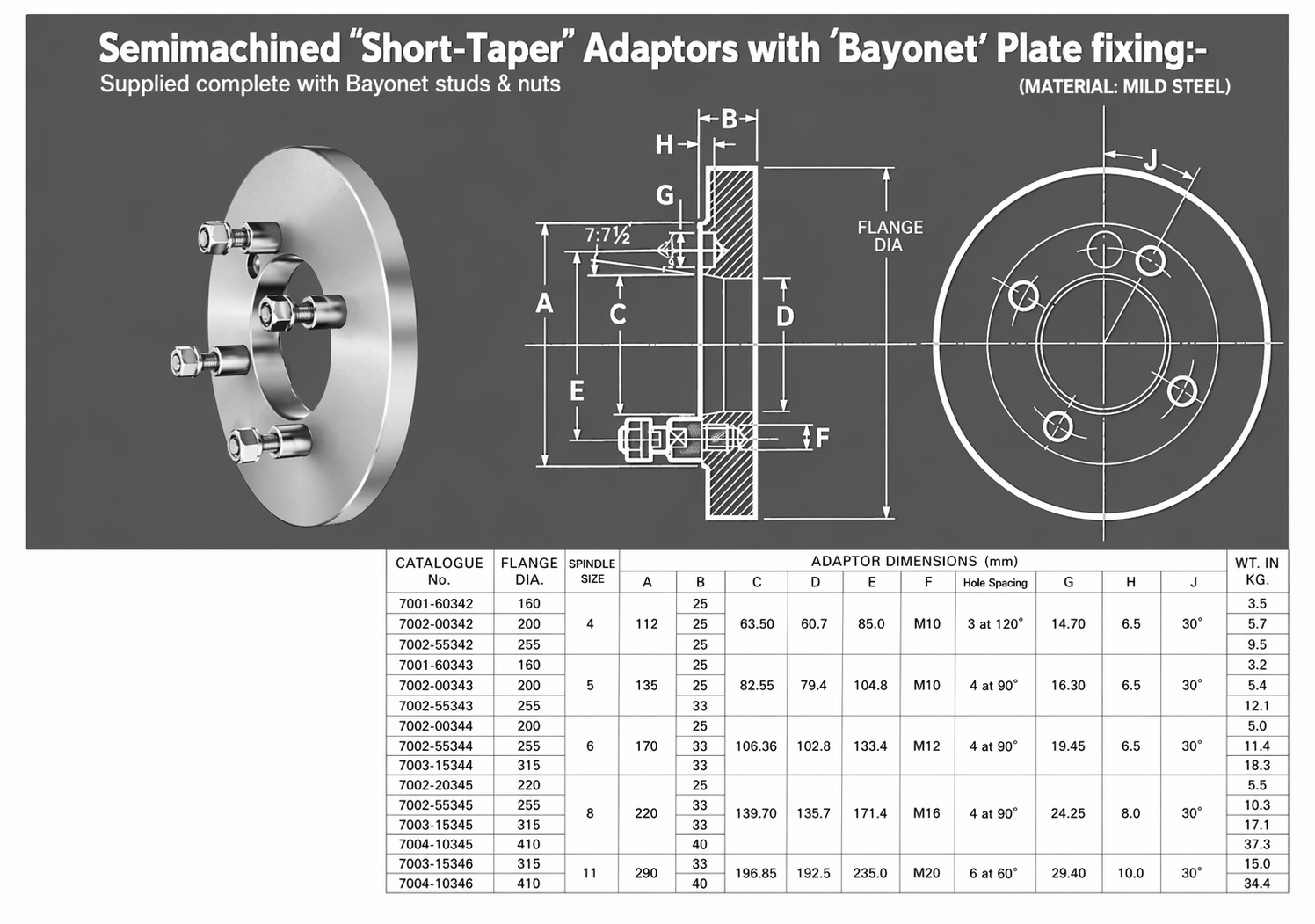

Short Taper with Bayonet Plate Fixing

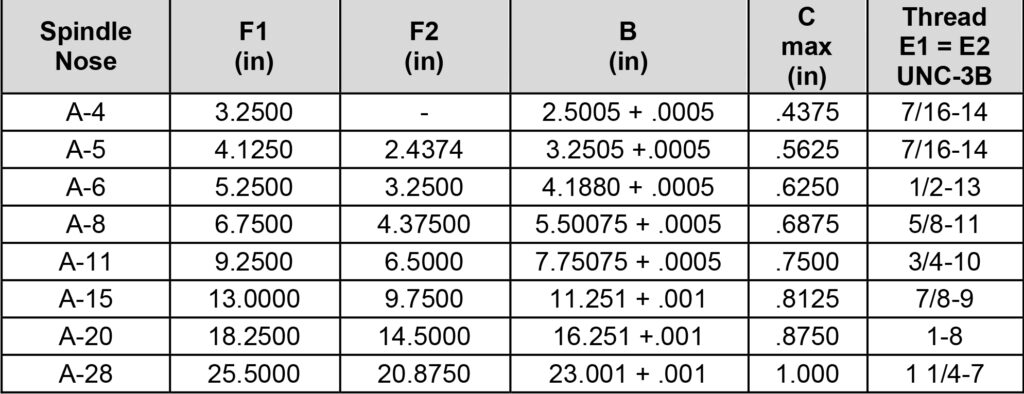

A1 & A2 Spindle Mounts
