We have a Lathe Hydraulic Copy Attachment for sale

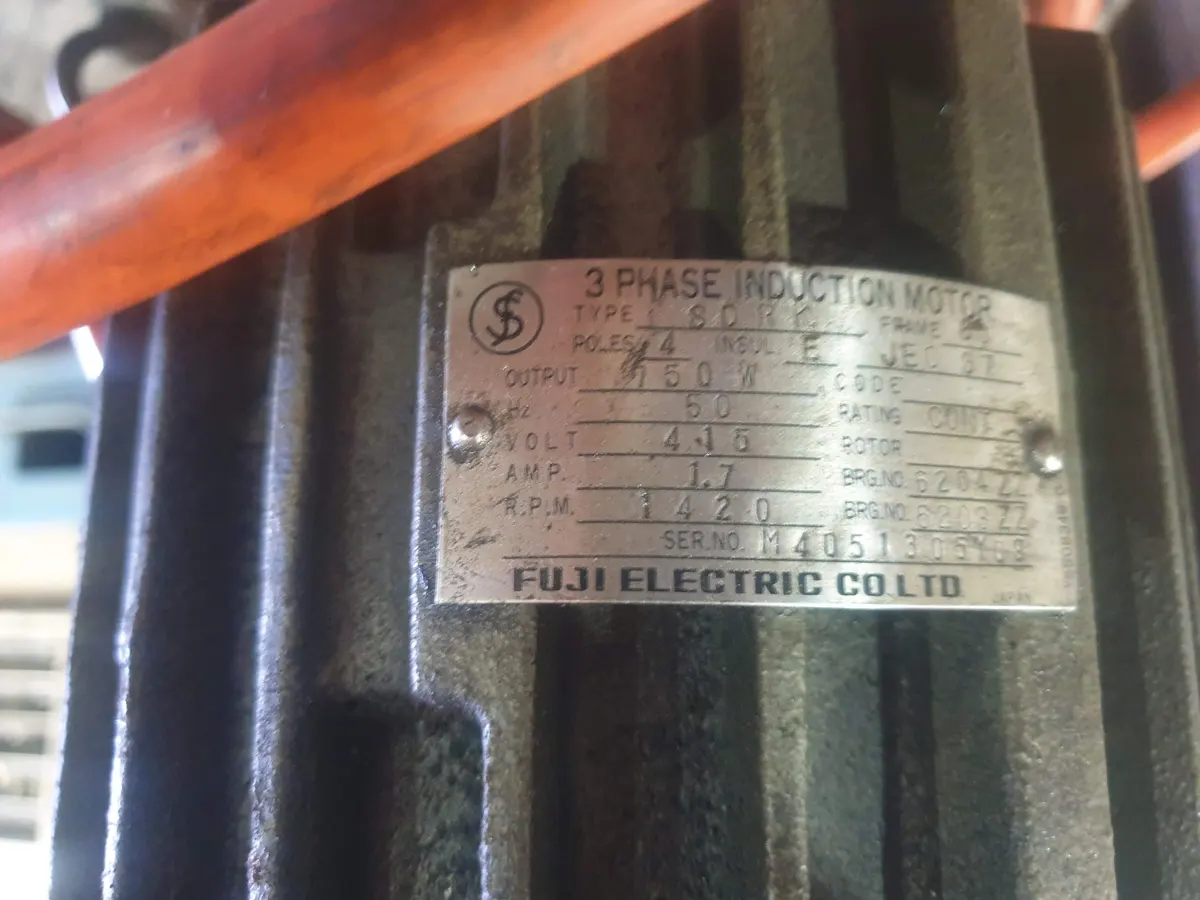

There are no markings to determine the brand, possibly made in Japan as the motor for the hydraulic power pack is branded Fuji Electric Co Ltd.
This hydraulic copy attachment (also known as a hydraulic tracer) is designed for manual engine lathes.
It replicates intricate profiles, steps, and tapers from a master template or sample piece onto a work piece without needing a CNC setup.
The equipment is divided into two primary hardware components:

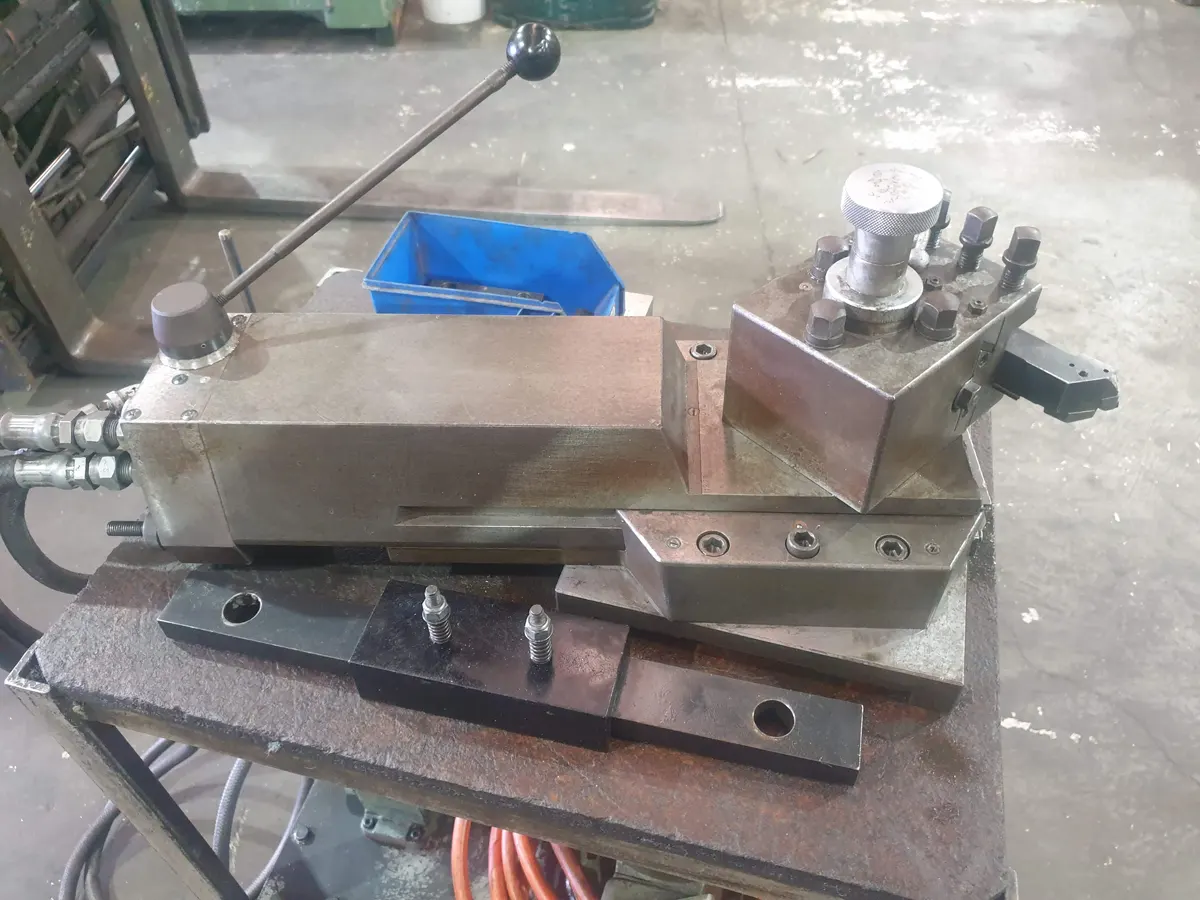

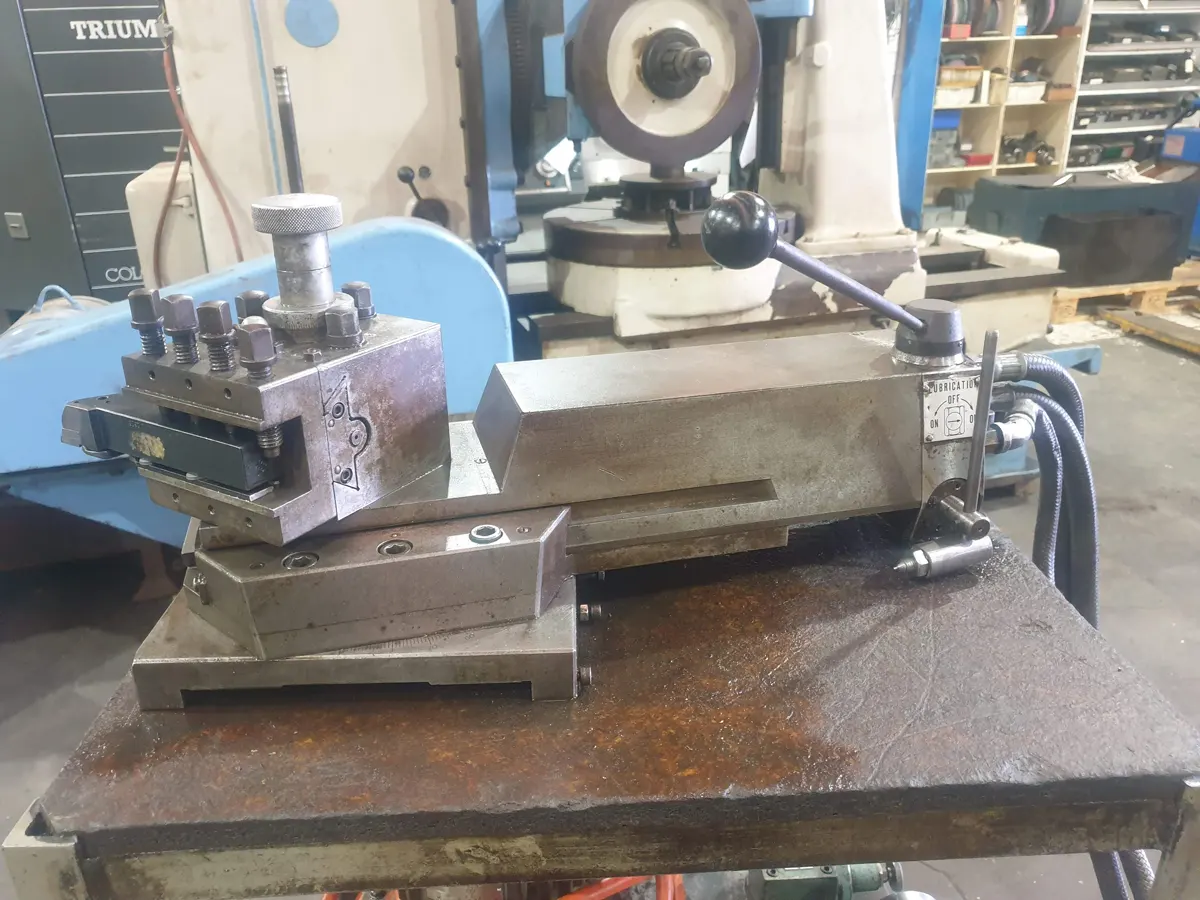

1. The Tracing Unit (Top Section)Mounting style:
The upper metal assembly mounts directly onto the cross-slide or the rear of a lathe carriage.
Tool Post:
Located on the left end, holds the cutting tool bit.

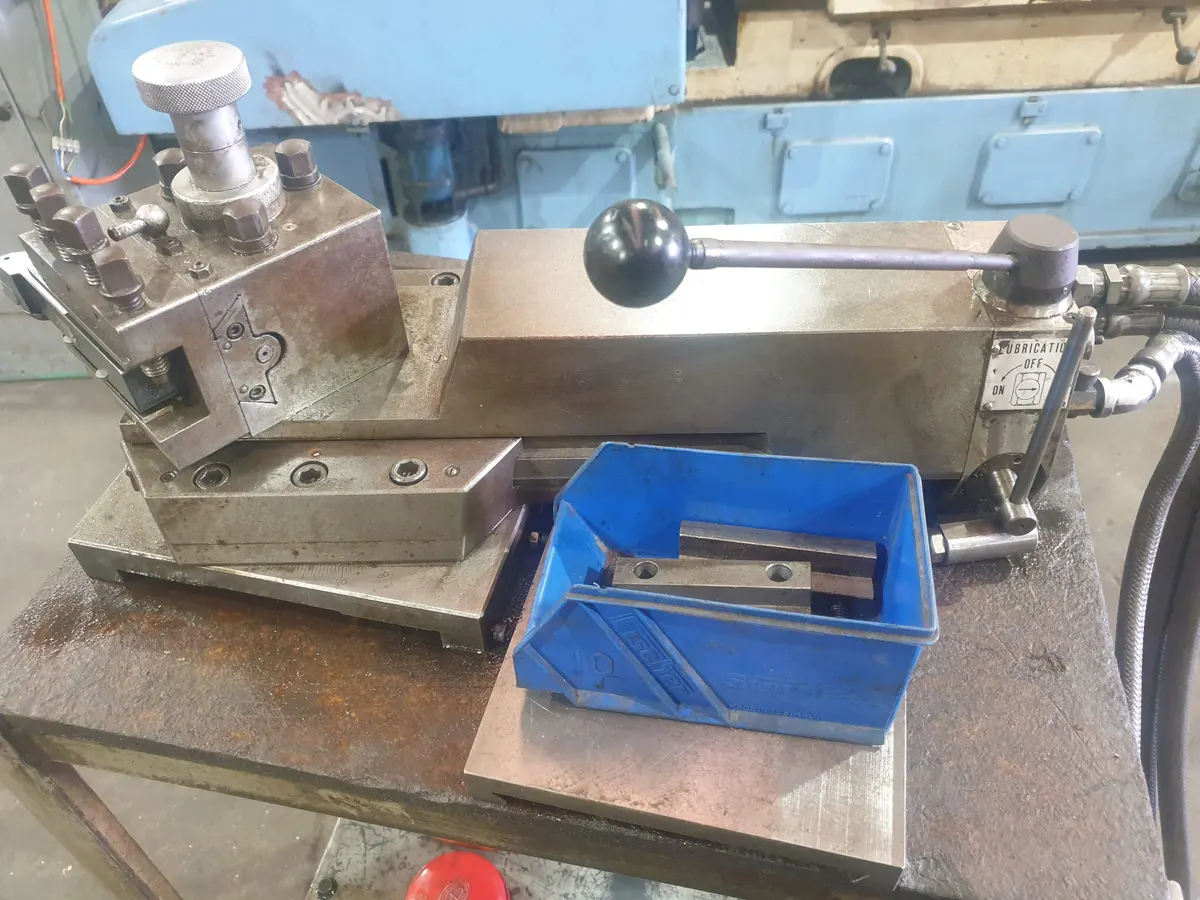

Hydraulic Slide:
The main body houses a single-acting or double-acting hydraulic cylinder that moves the cutting tool dynamically along the X-axis.
Stylus and Valve:
The long lever arm connected to the rear controls the highly sensitive internal spool valve (servo control valve). As the stylus follows a template bar mounted on the lathe bed, it modulates hydraulic fluid flow to move the tool post perfectly in sync with the pattern.

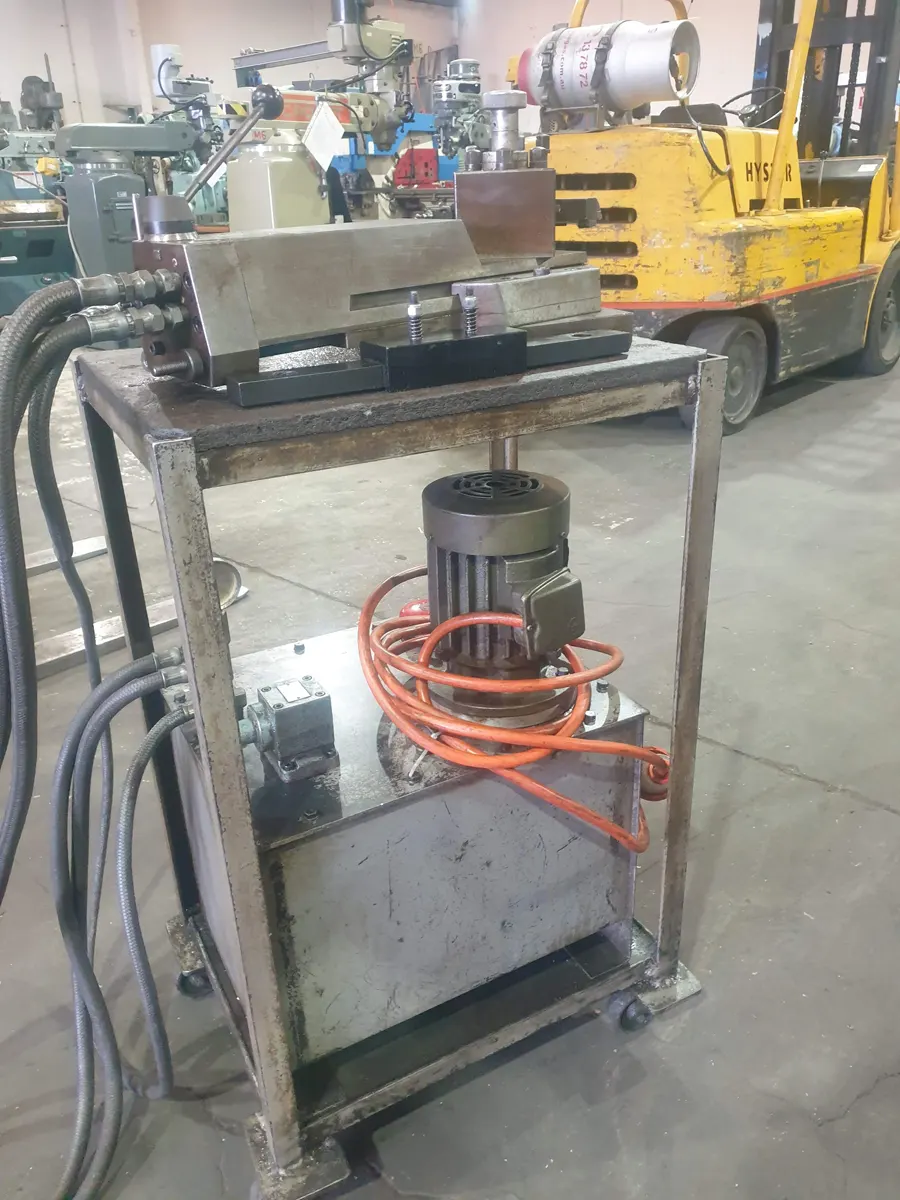

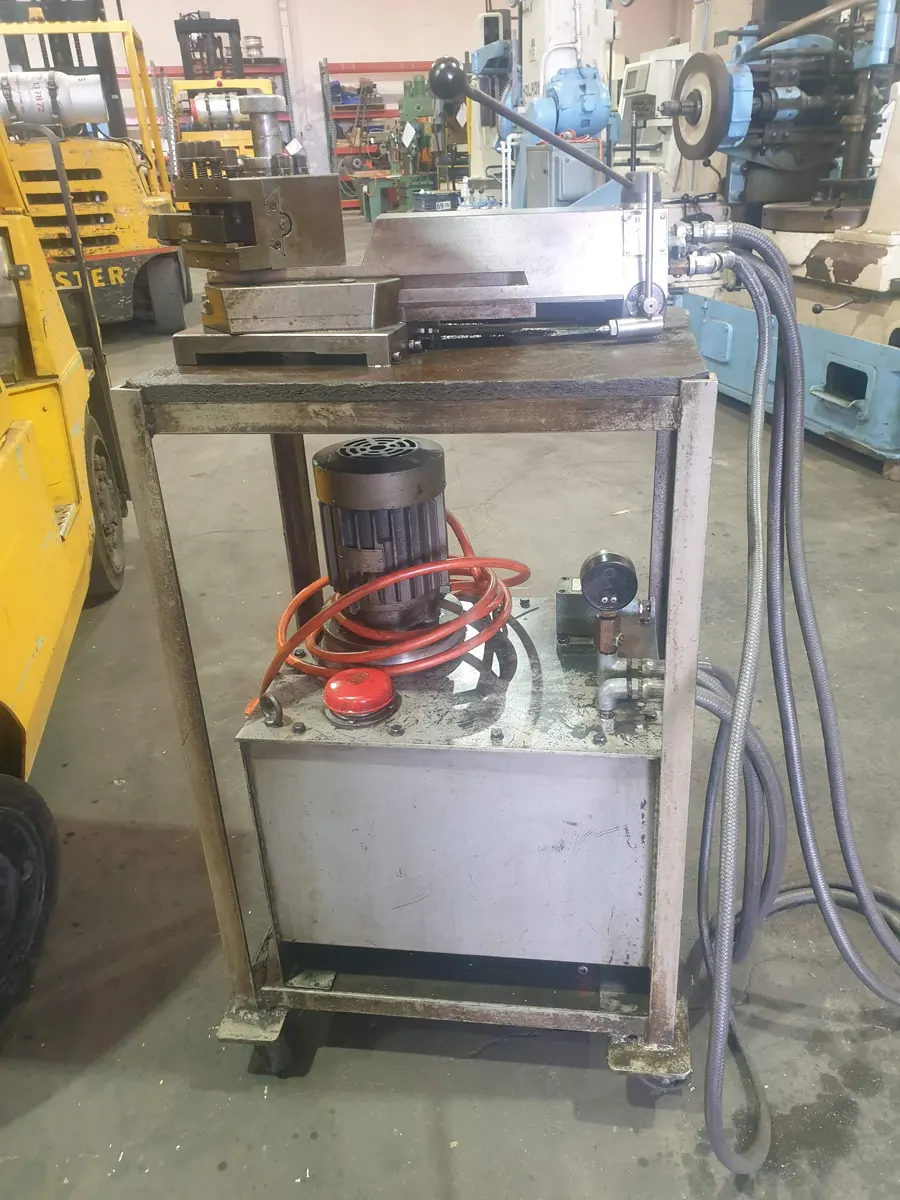

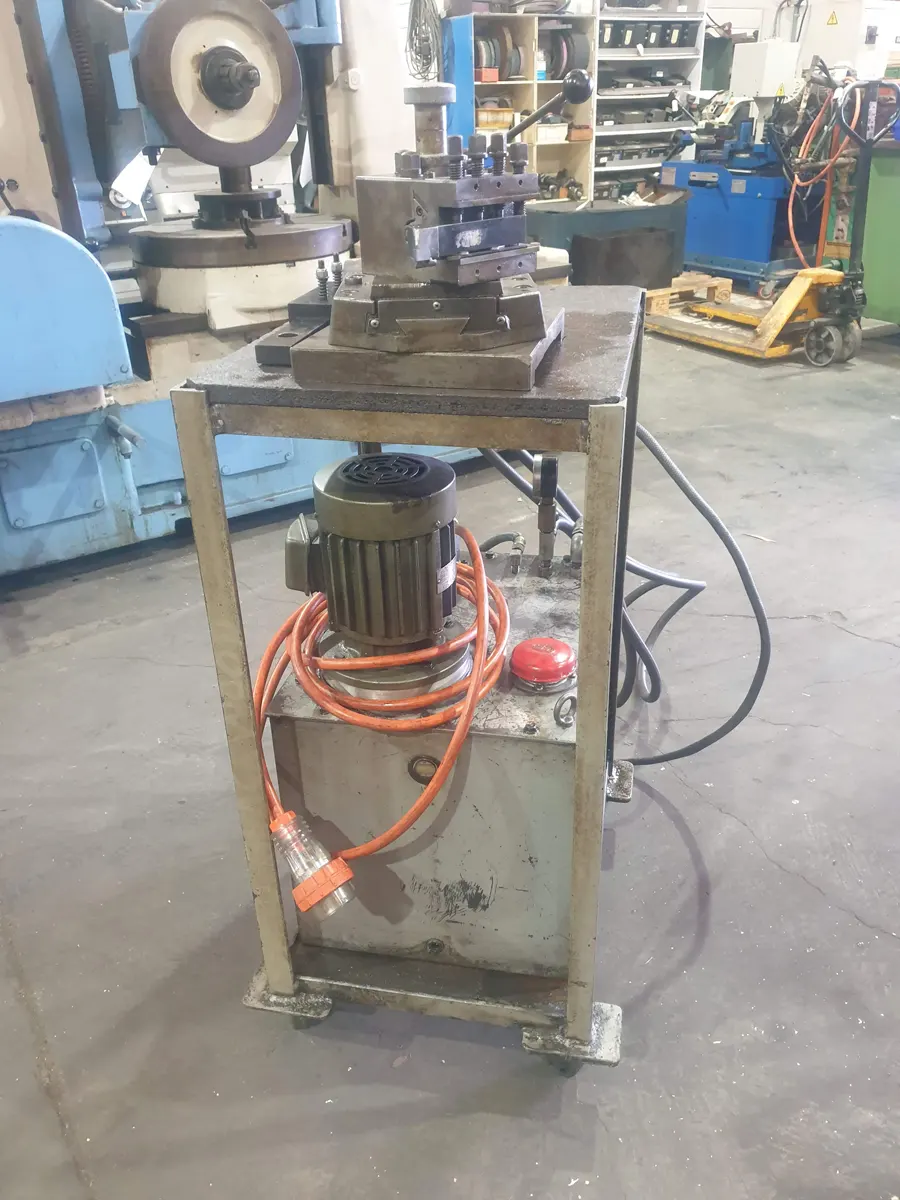

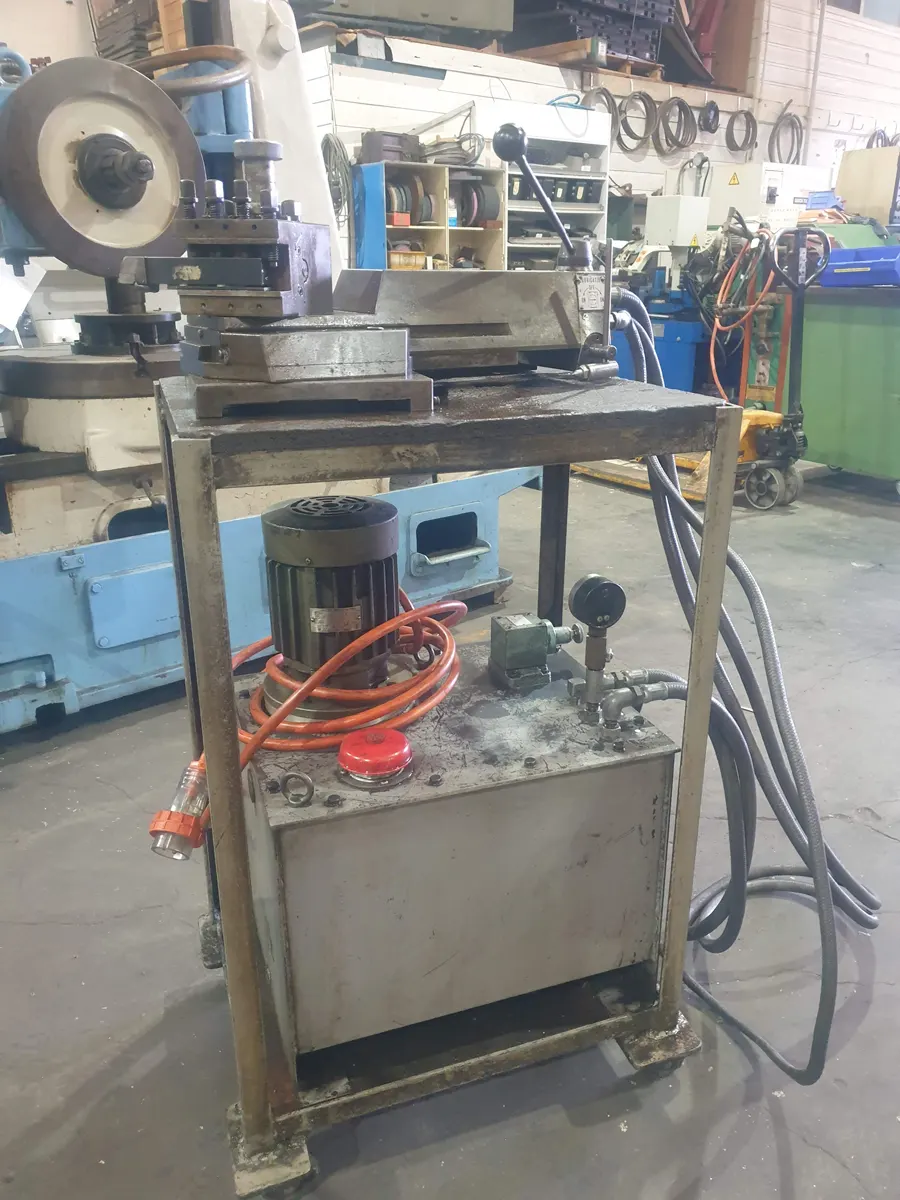

2. The Hydraulic Power Pack (Bottom Section)Electric Motor:
The top-mounted industrial motor drives the internal hydraulic pump inside the reservoir tank.
Fluid Reservoir:
The heavy-duty steel base tank stores and cools the hydraulic oil.
Pressure Management:
Features an analogue pressure gauge to monitor system operational limits (typically functioning between 14 to 18 Kg/cm²) and an integrated oil filler cap.

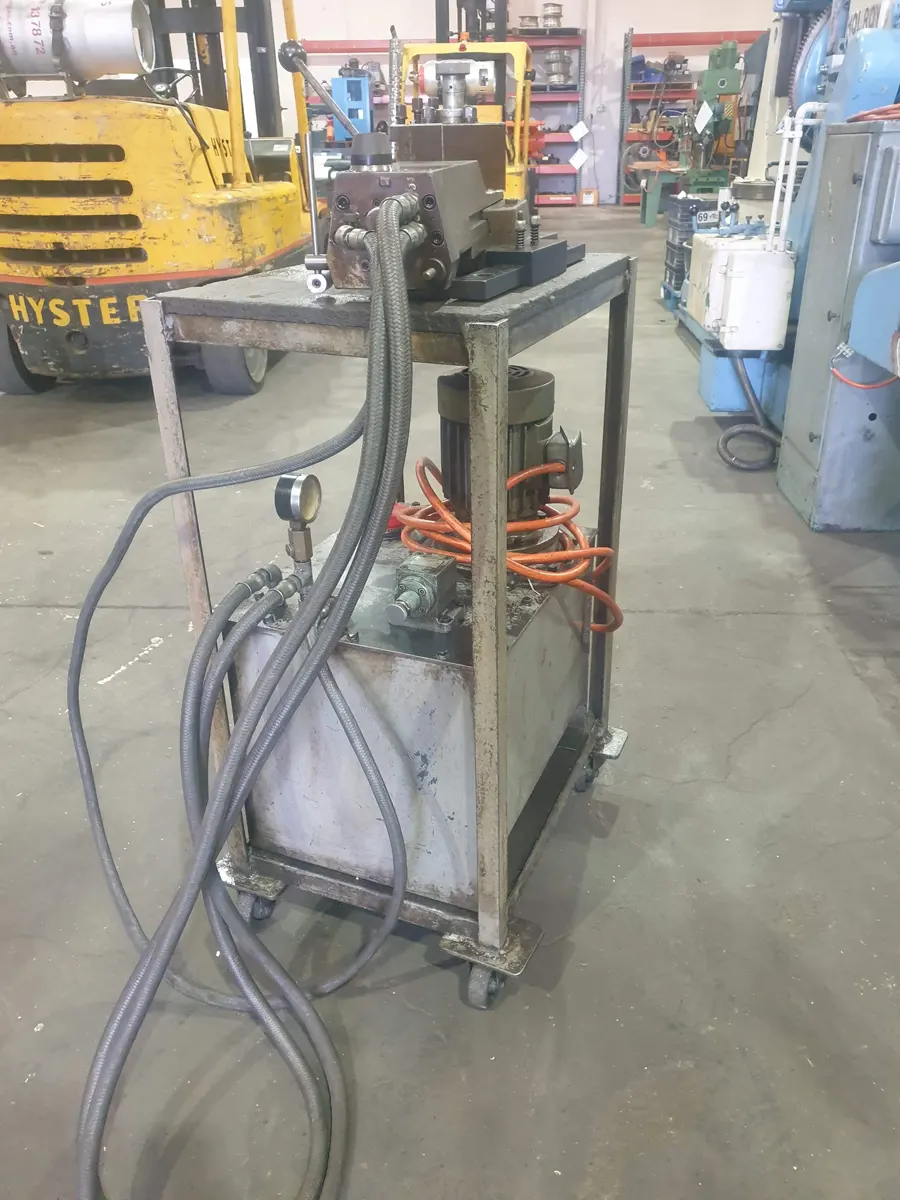

Hoses:
Heavy-duty flexible hydraulic lines transfer fluid pressure dynamically between the base pump and the upper tracing tool slide.
- Hydraulic Power Pack
- 415V 3 Phase Motor
- Hydraulic advance and retract of tool
- Comes complete with metal frame on wheels
Price: $1,000.00 + GST Ex Works
