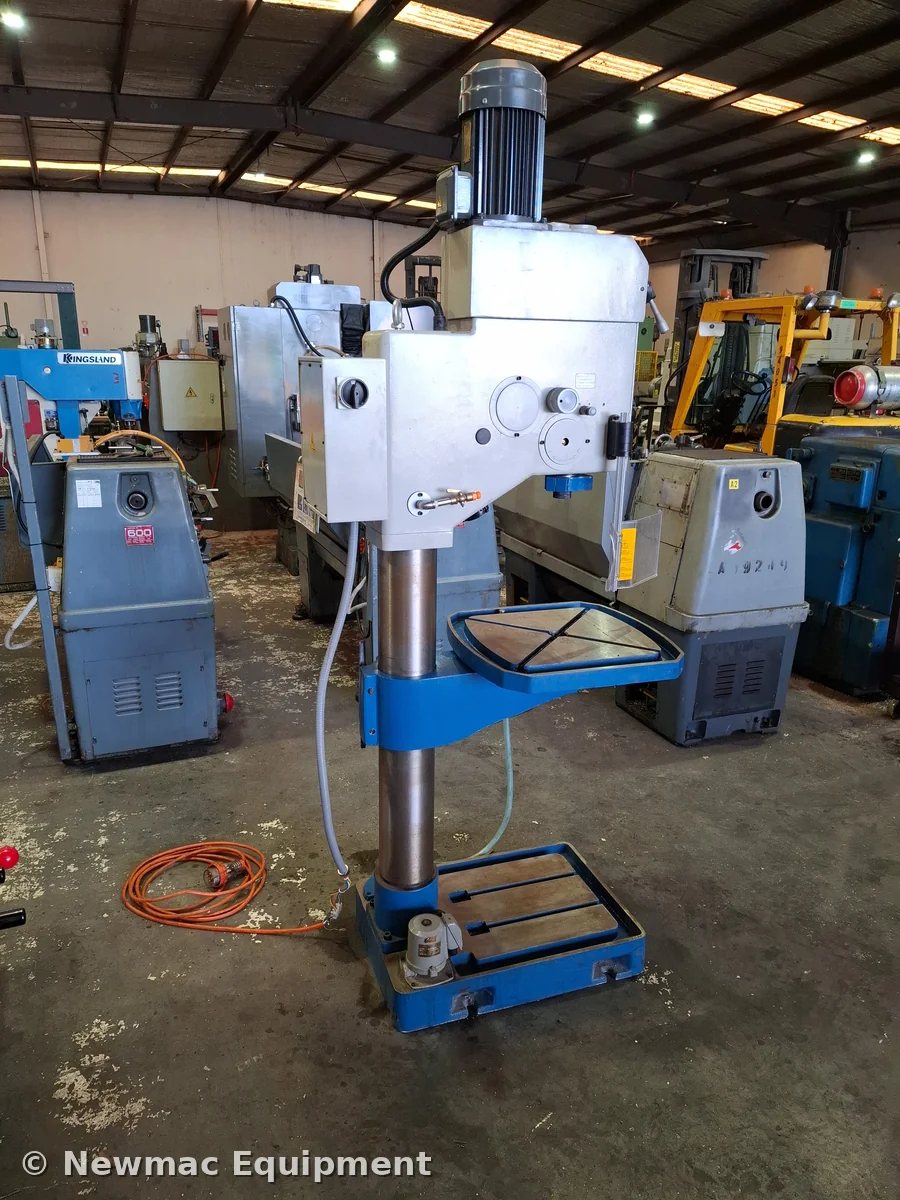

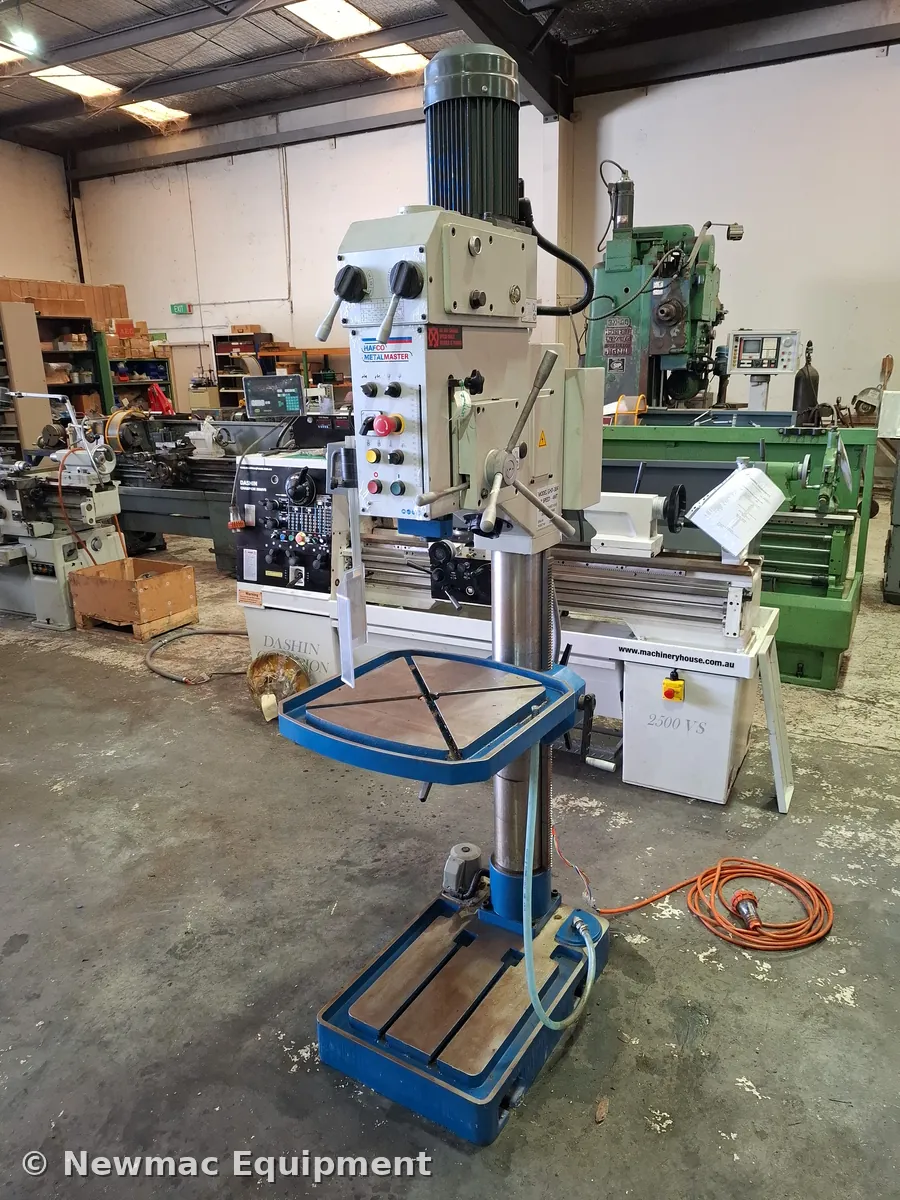

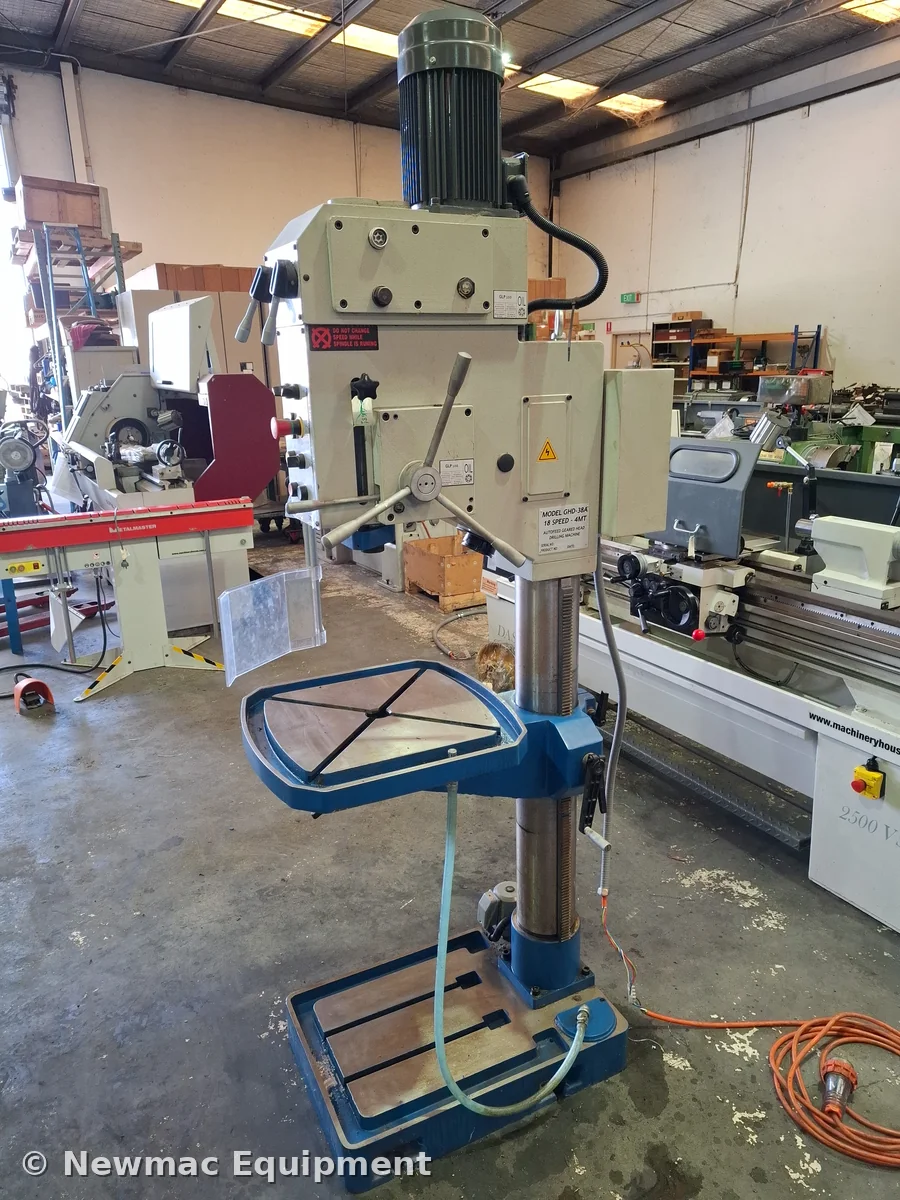

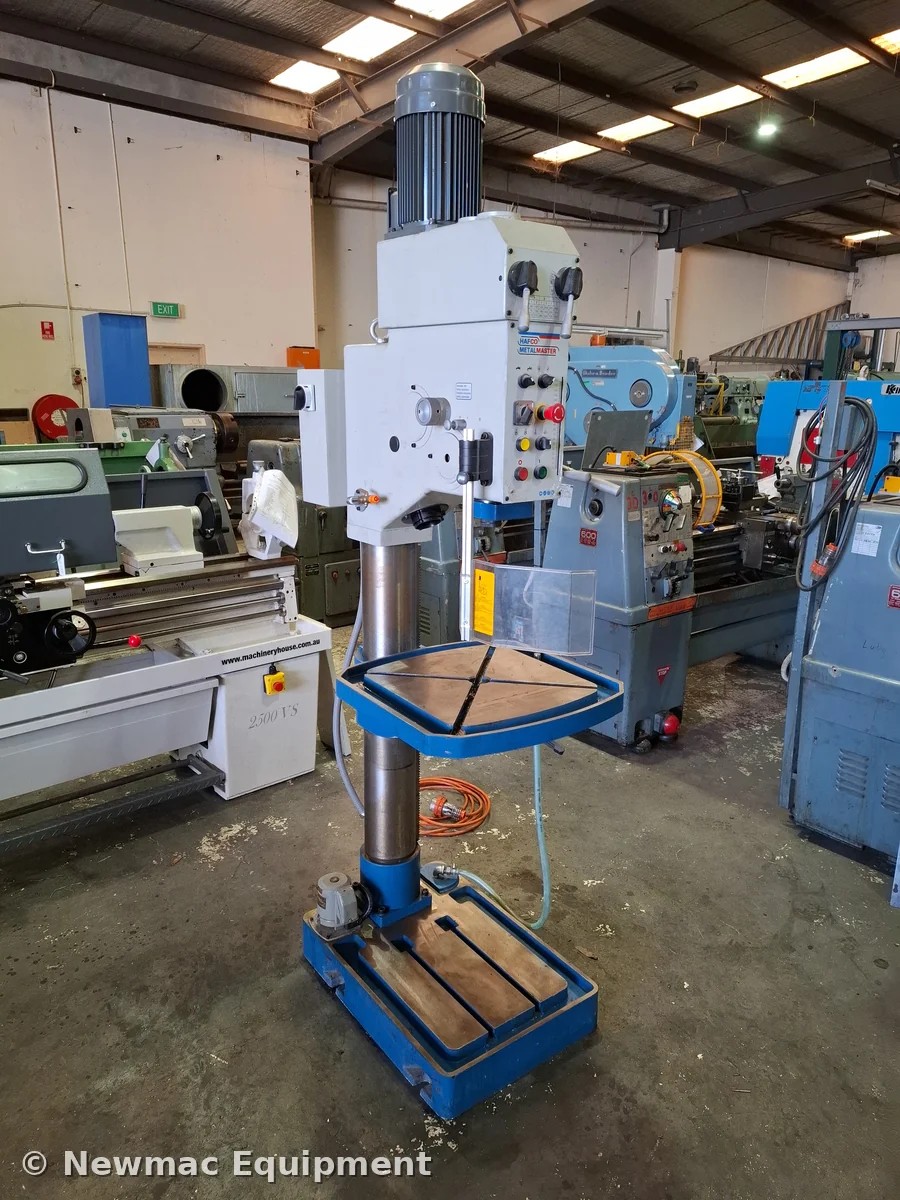

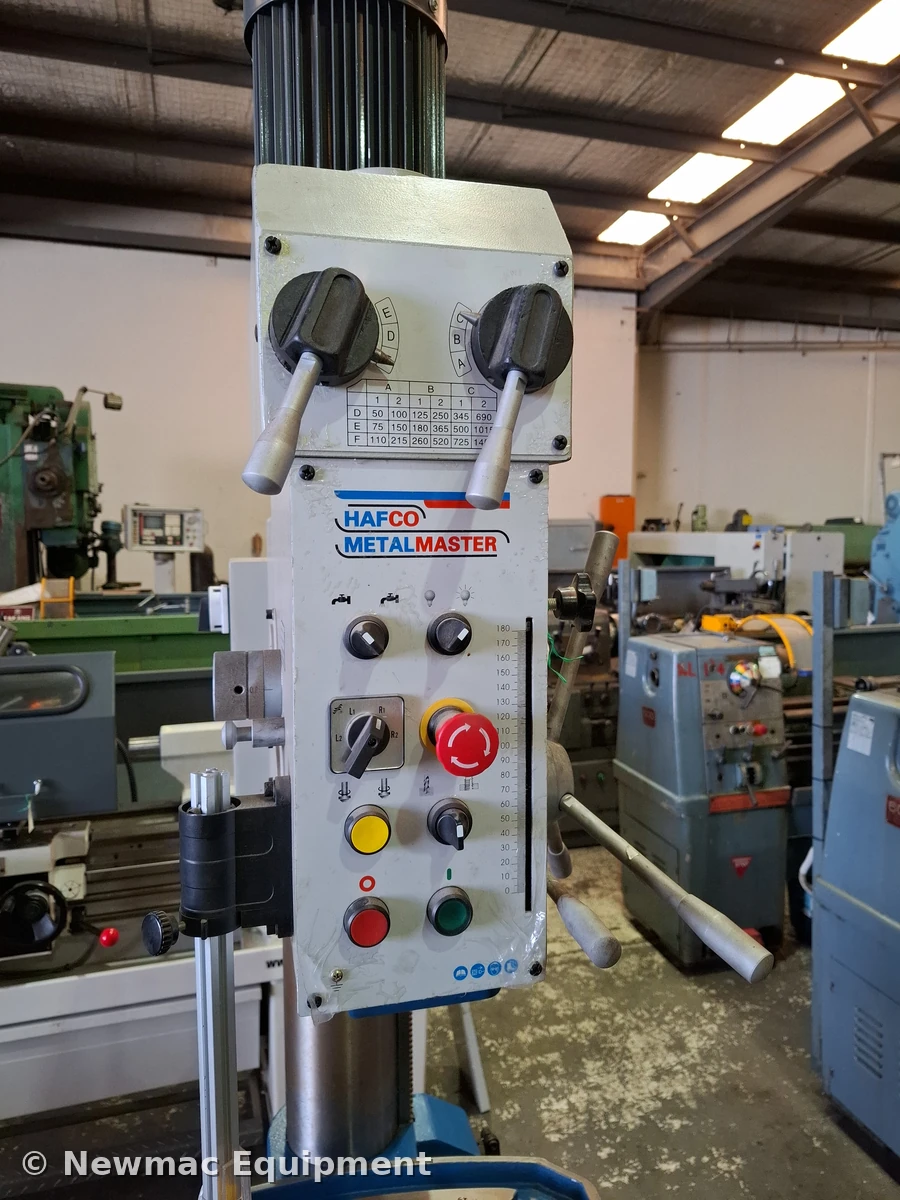

We have a near-new condition, ex-education department Hafco Metalmaster GHD-38A geared head drilling machine for sale
Stock # 4682
A solidly built geared head drill press with a generous 560 x 560mm table and 40mm drilling capacity in mild steel — suited to workshops needing reliable capacity beyond a standard bench drill. Fitted with coolant system and worklight, this unit has been run and checked with no faults found, presenting in near new condition.
Specifications

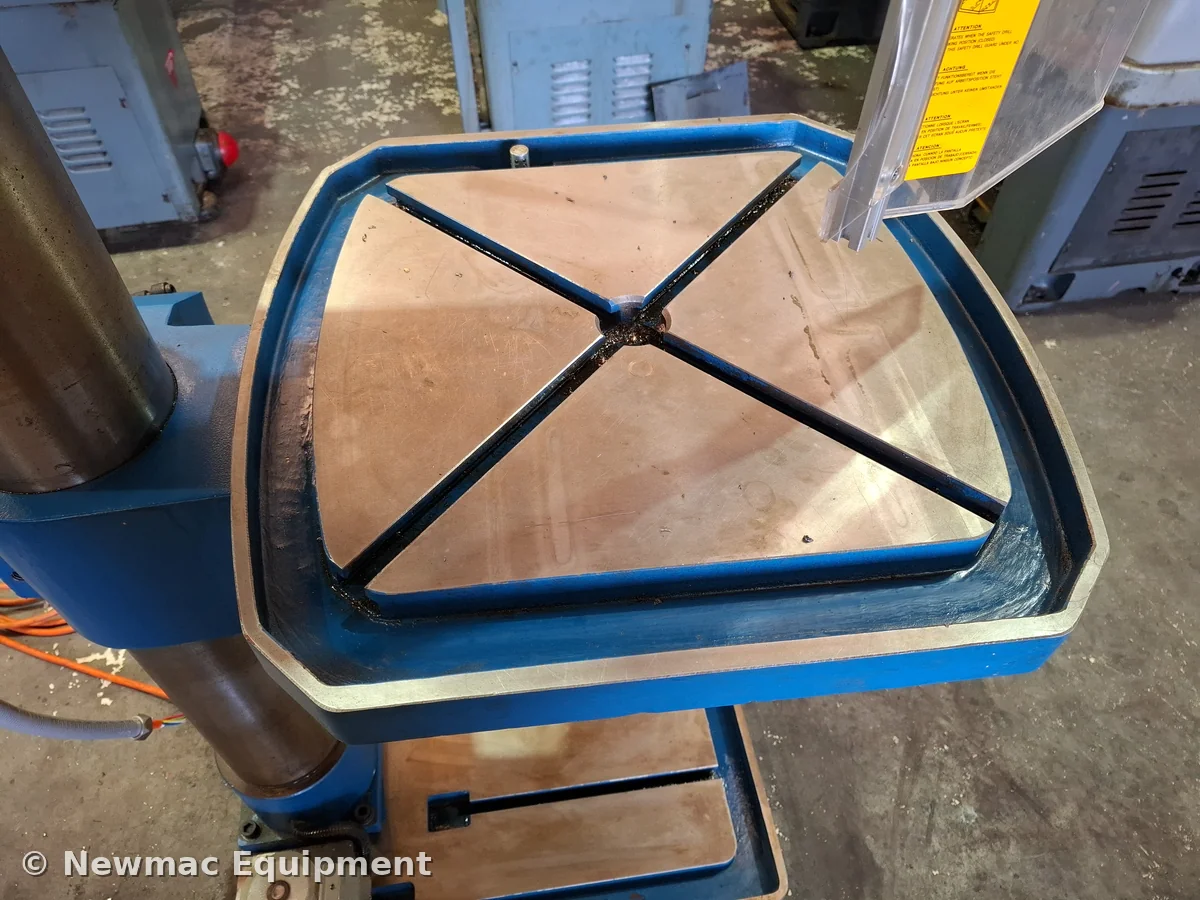

Table size: 560 x 560mm
Max drilling capacity (mild steel): 40mm
Distance from spindle centre to column: 350mm
Distance from base plate to spindle nose: 1320mm
Distance from table to spindle nose (max): 780mm
Spindle speeds: 50–1450 rpm
Feeds: Auto/manual, 0.1, 0.2mm/rev
Tapping capability: M24
Morse taper: MT4
Quill travel: 180mm
Motor: 2HP / 1.5kW
Power: 415V
Overall height: 2220mm
Weight: 550kg
Accessories included
Coolant system
Worklight
Condition
Presents in near new condition. We have run the drill and all functions work as designed — no faults found.
