Archdale MT5 x 1470mm radial arm drilling machine (415V) – Stock # 2735

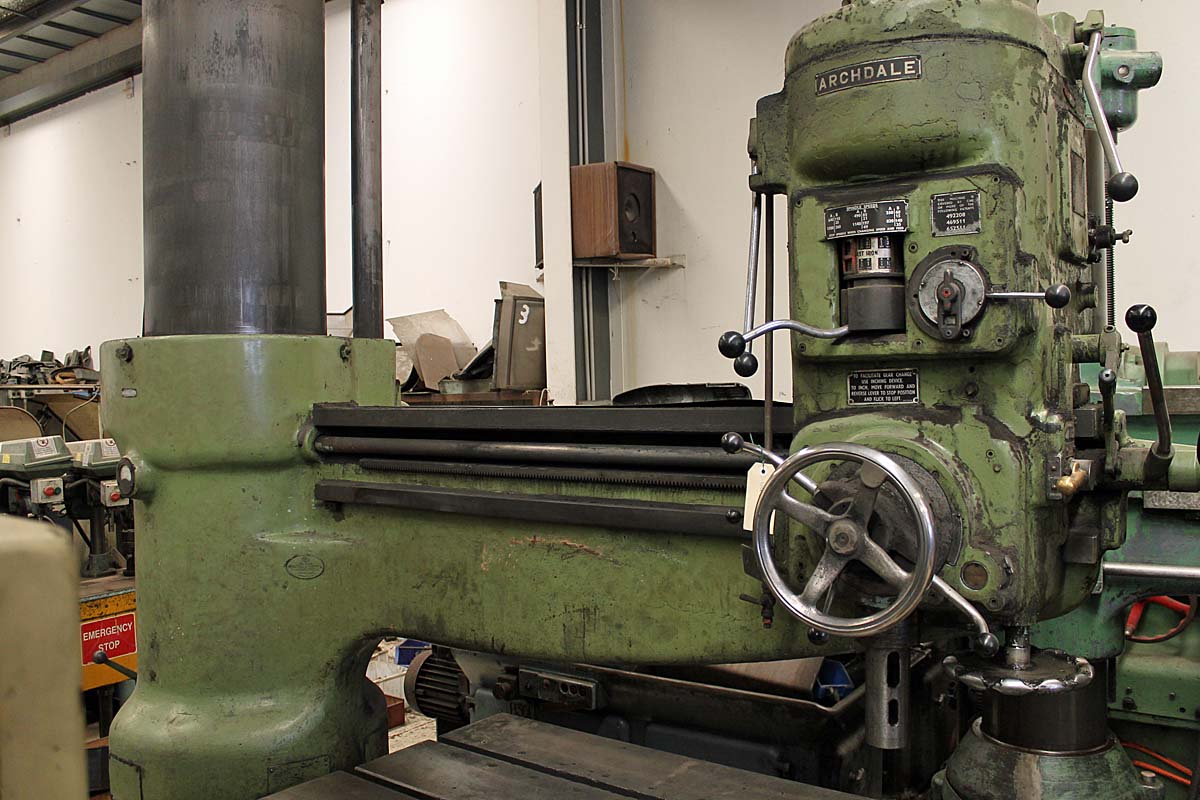

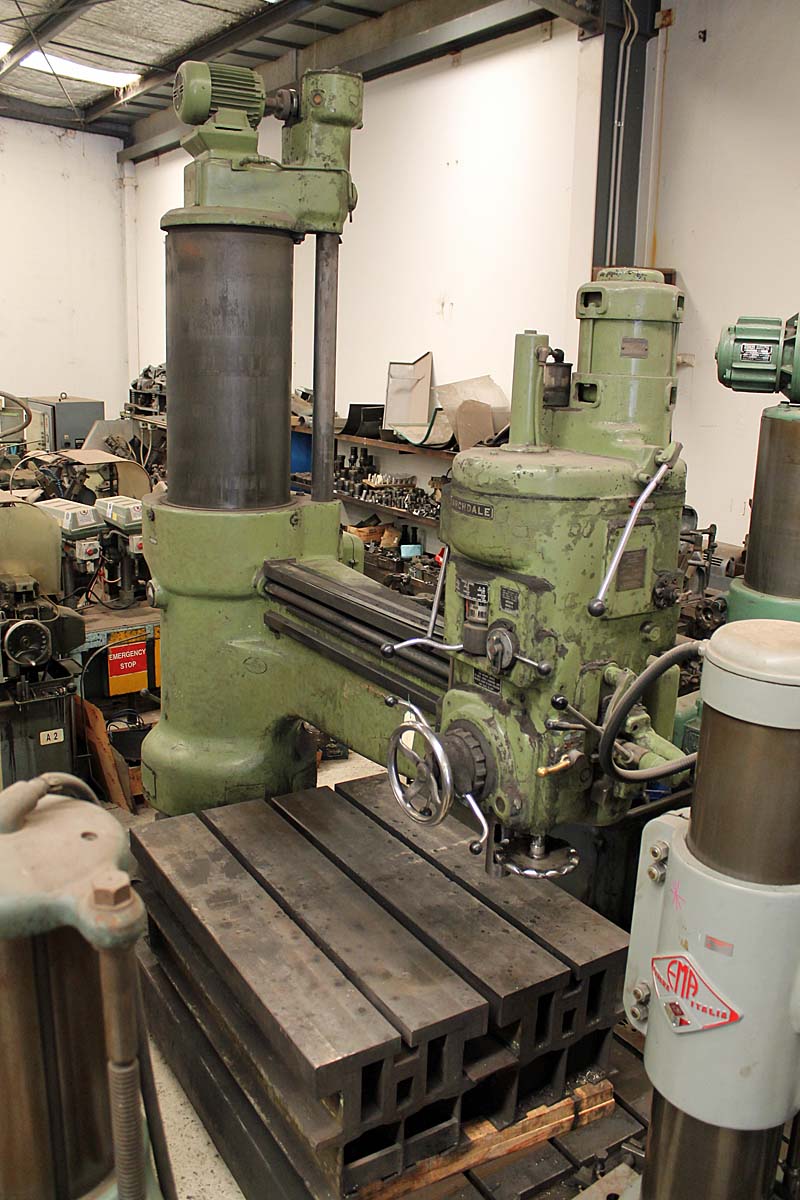

We have a very good used condition Archdale radial arm drill for sale.

A proper English Archdale — built when Birmingham led the world in machine tools

Archdale’s radial arm drills earned a reputation as some of the best-built machines to come out of England, and this one carries a generous 1470mm reach with a 5MT spindle for heavier work than most bench drills can handle.

Specifications:

Morse taper 5 spindle

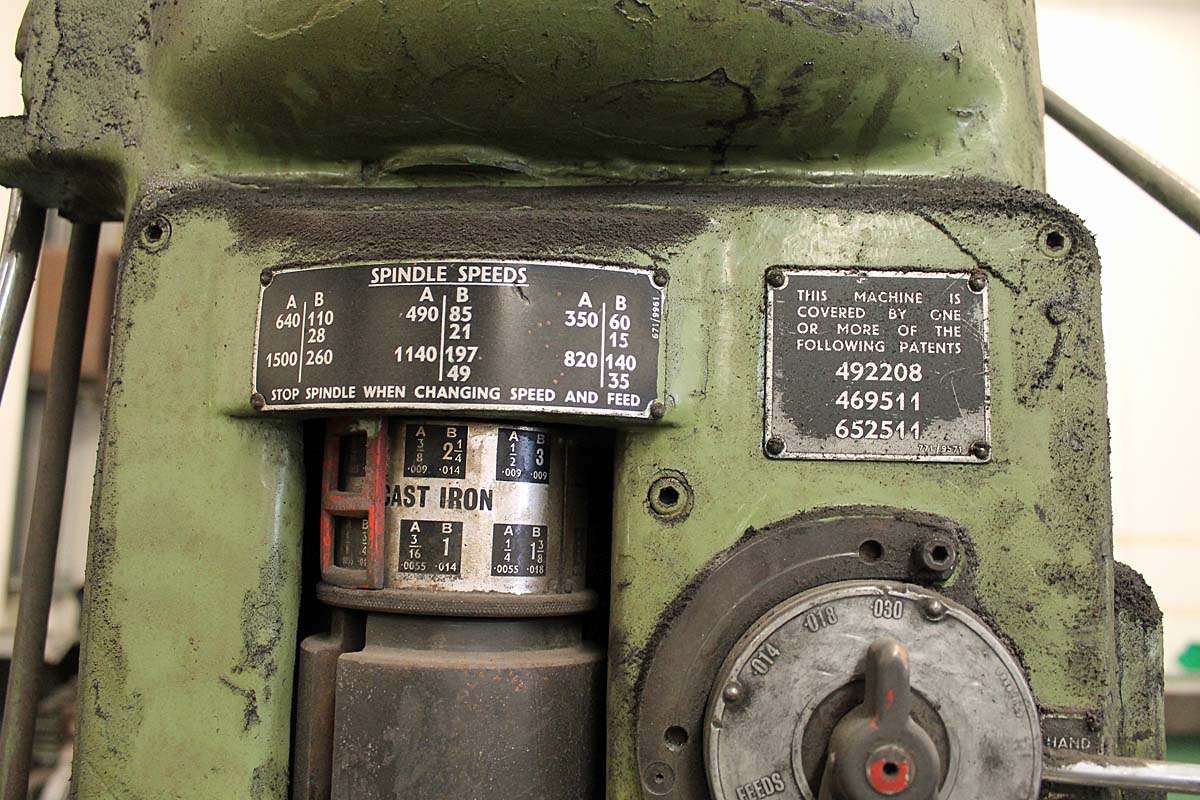

Spindle speeds: 15 – 1500 rpm
Max distance between column and spindle: 1470 mm

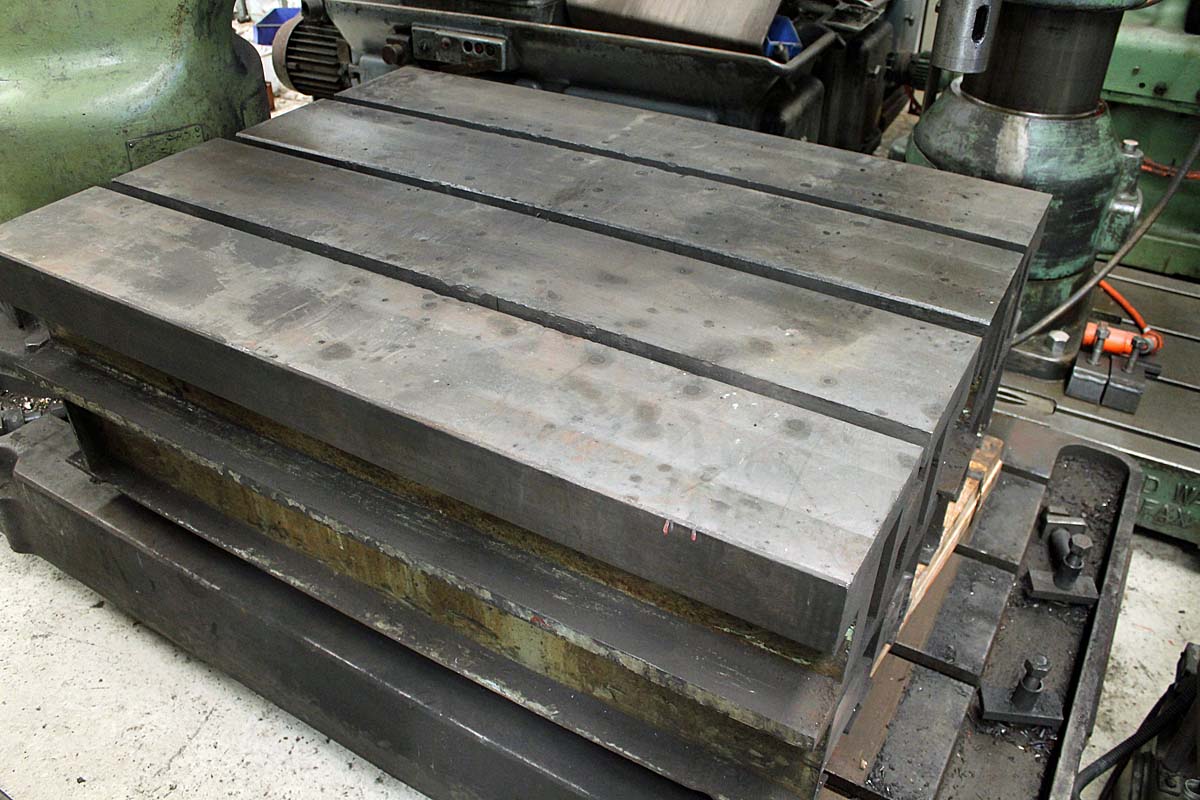

Comes with 1400 mm × 1050 mm × 450 mm box table
Overall dimensions: 2.8 m × 1.3 m × 3.4 m high
Weight: approx. 8 tonnes

Please click here for printable pdf & price (opens in new tab)

Slide show below can be paused by hovering the mouse cursor over the current photo. It will resume when the cursor is moved off the photo
