We have a new 40 Position Multifix Style E5 Quick Change Tool Post for sale.
Upgrade your lathe precision and efficiency with this E5 series Quick Change Tool Post (QCTP) system. This “Multifix” style 40-position design allows for instantaneous tool changes with a guaranteed repeat accuracy of 0.01mm, significantly reducing setup time for complex machining jobs.
- Comes with

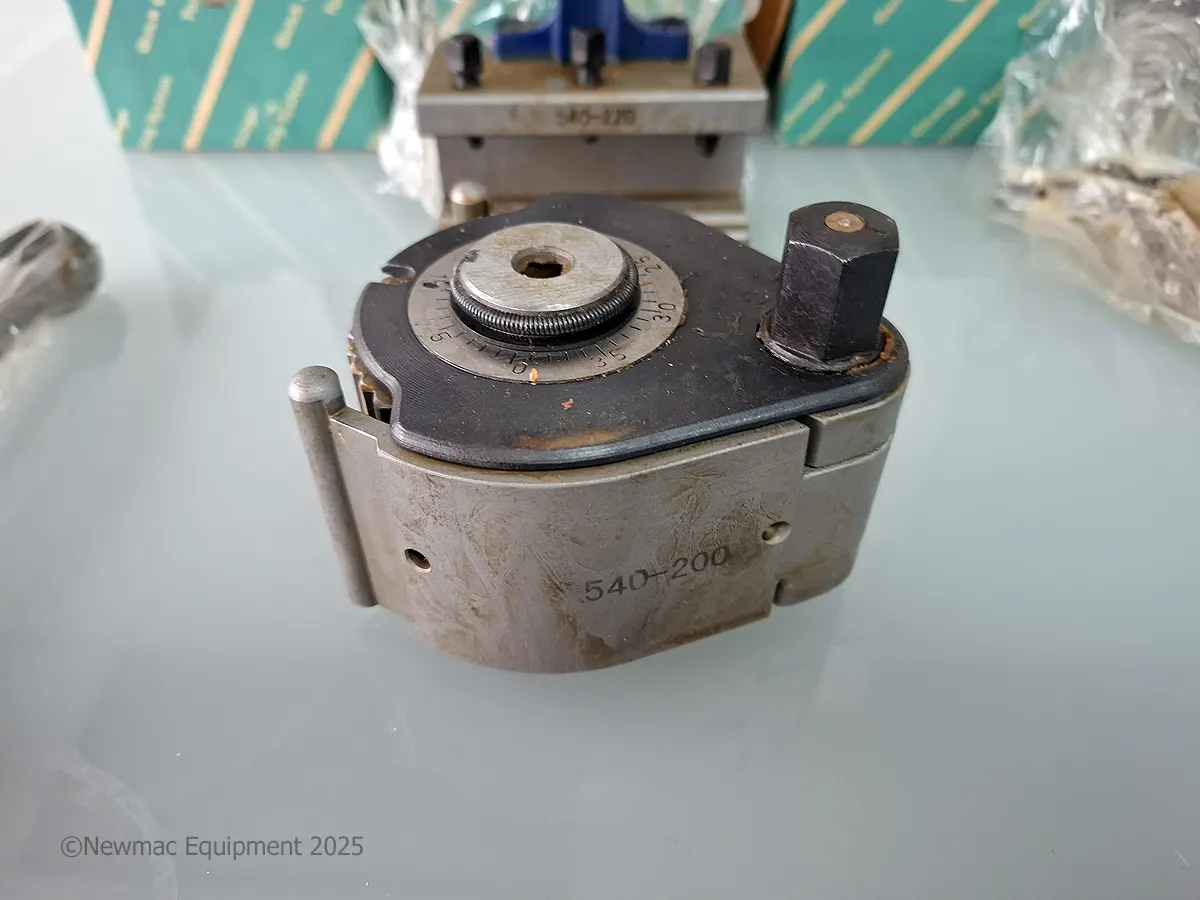

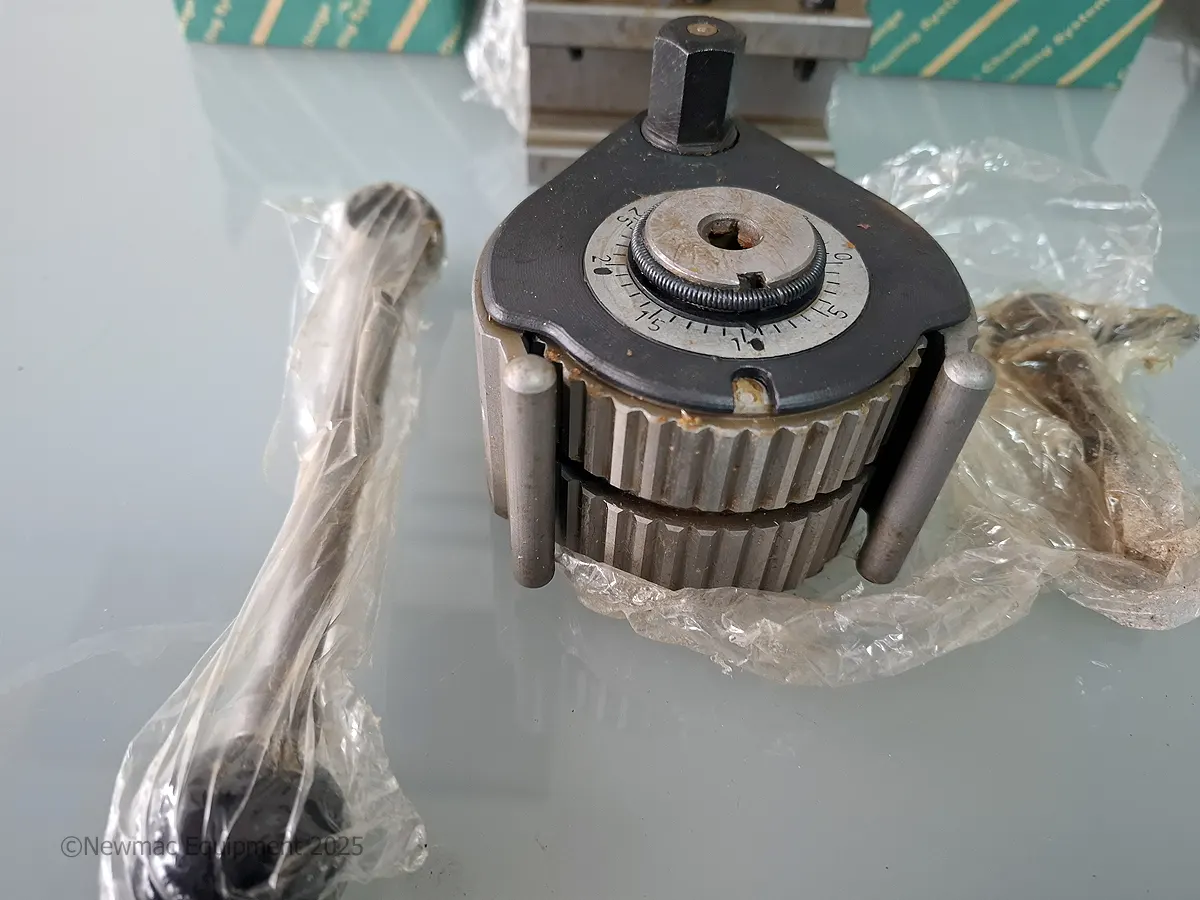

- 1 x 540-200 40-position tool block

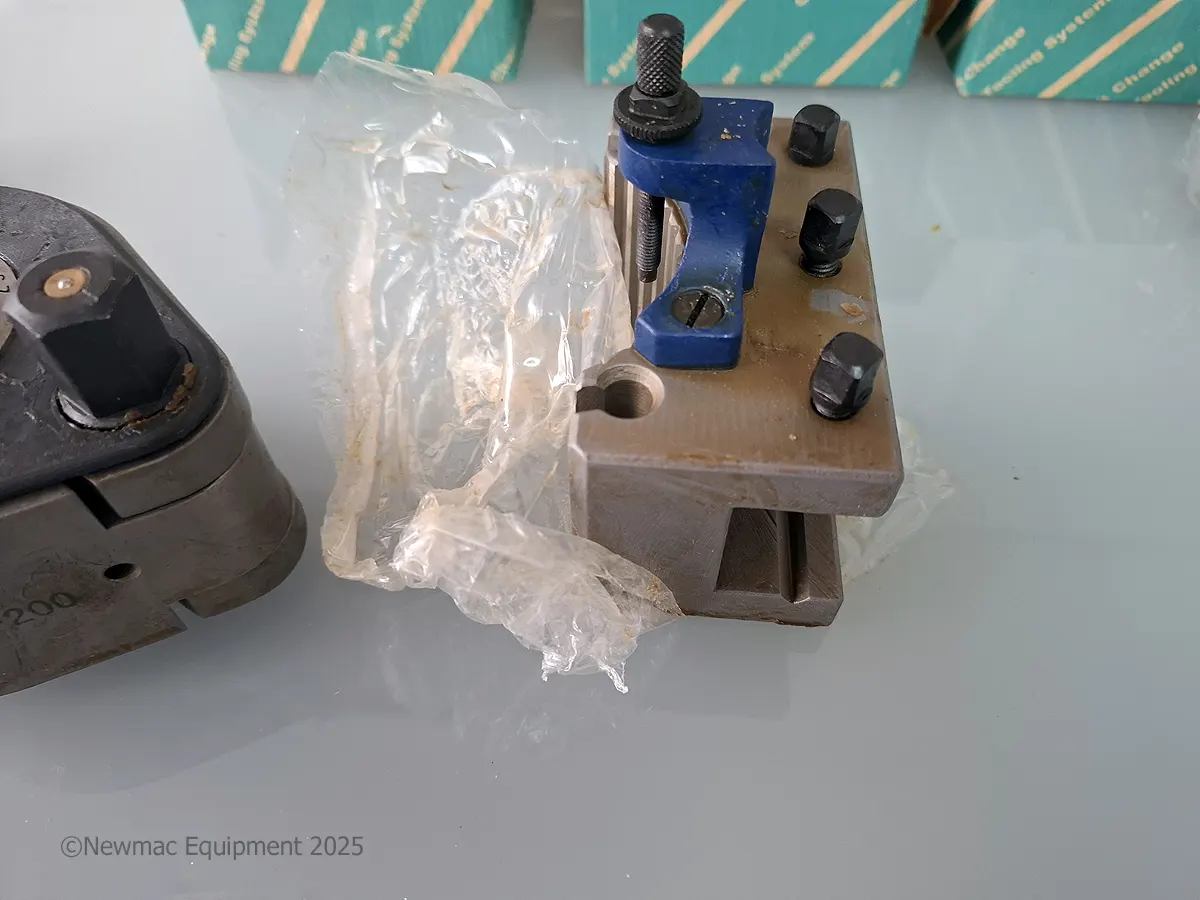

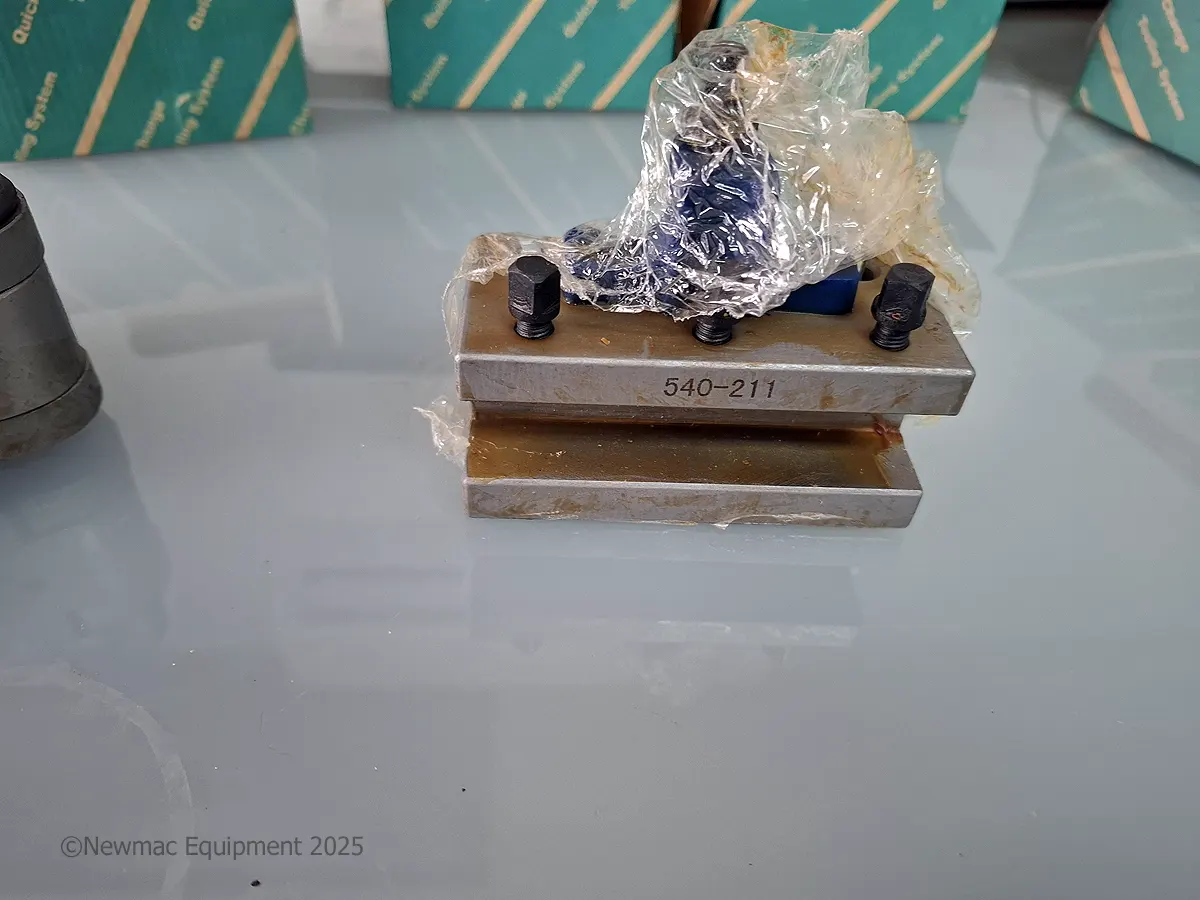

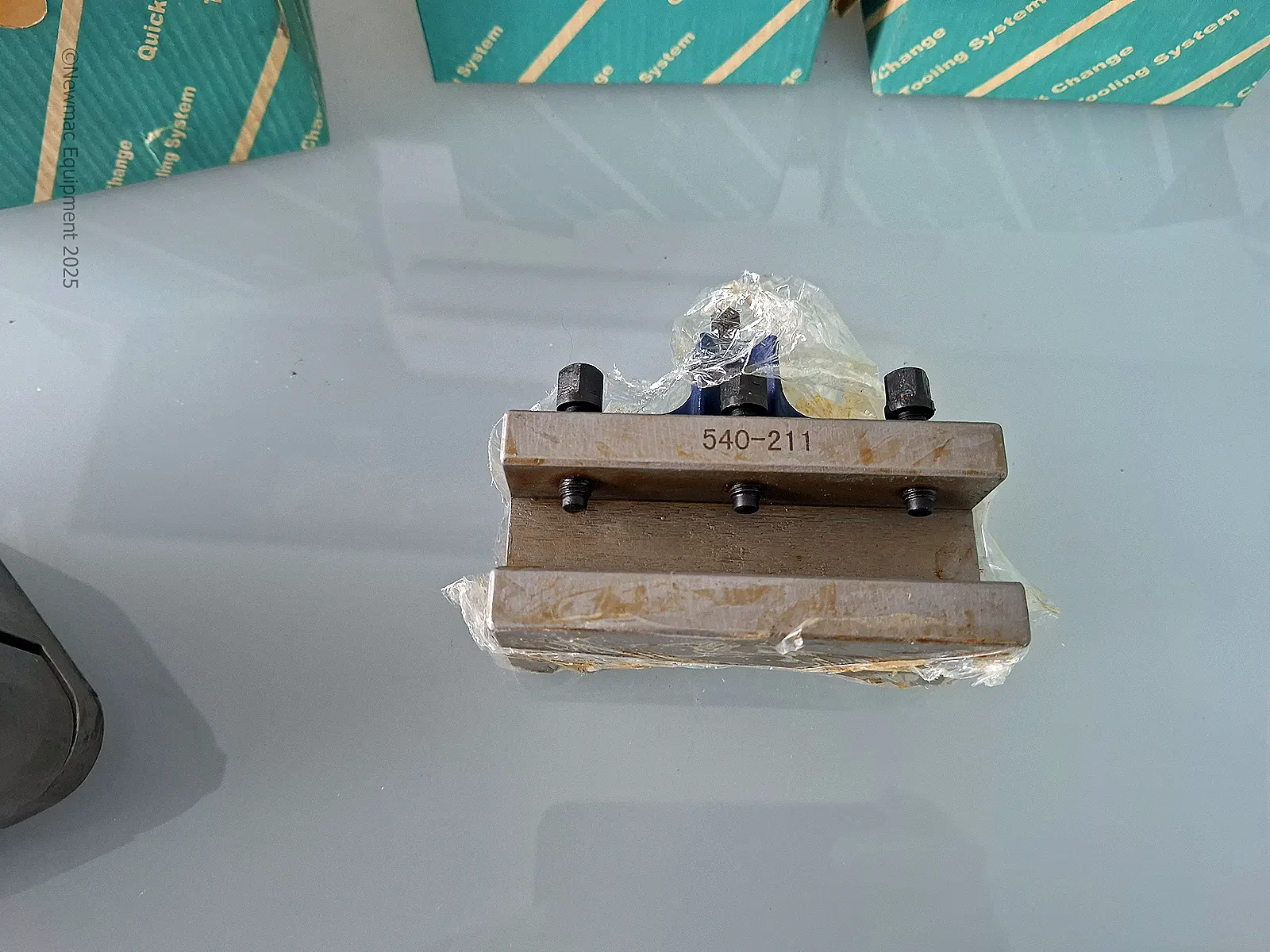

- 3 x 540-211 tool holders

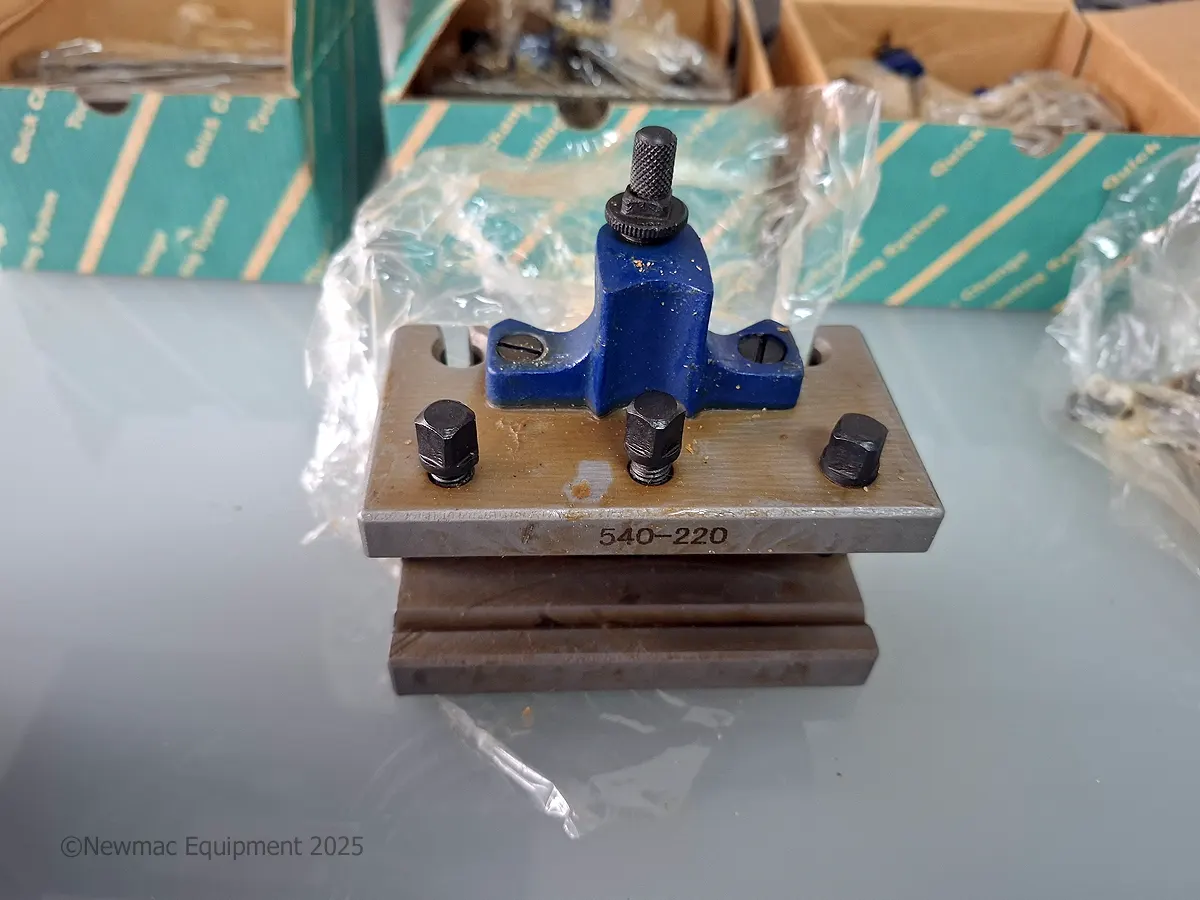

- 1 x 540-220 tool holder (accommodates boring bar)

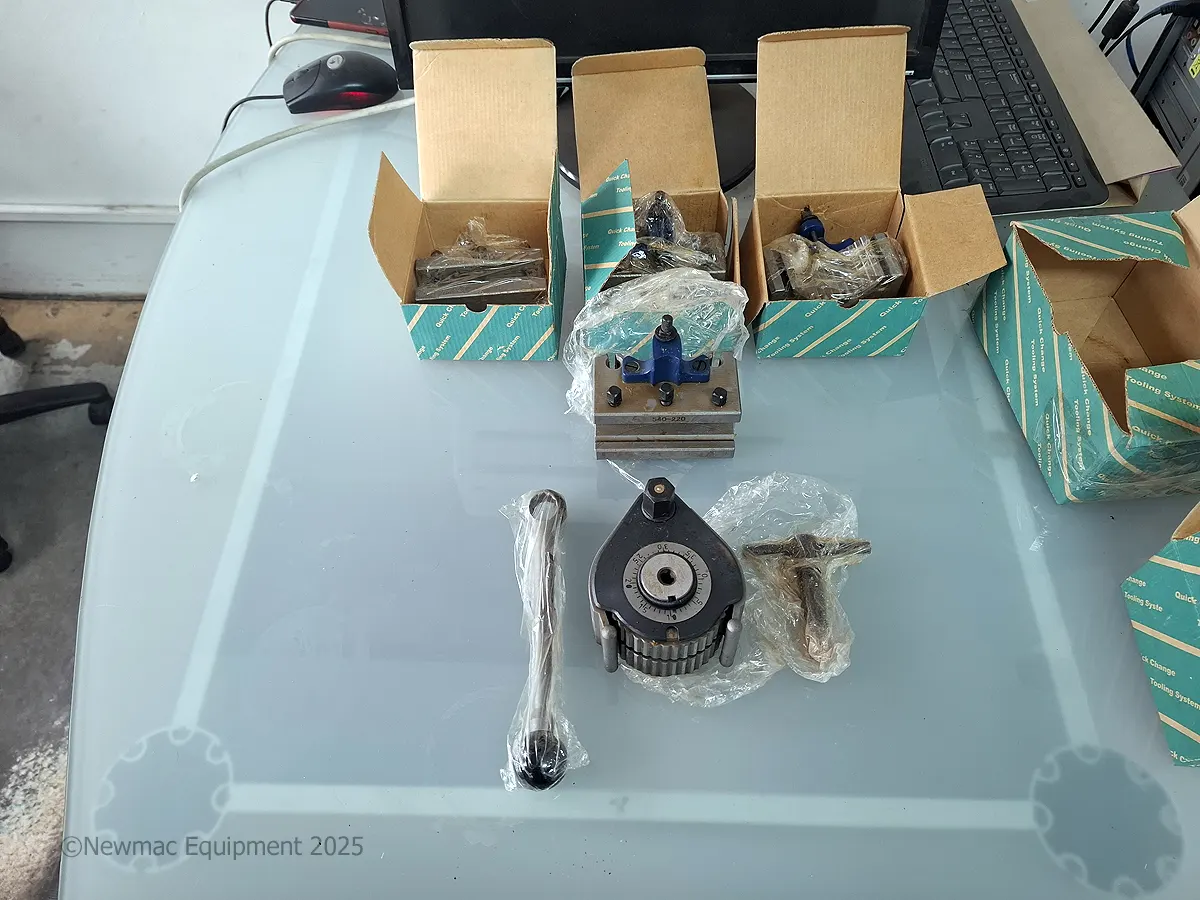

- Tooling as per photos

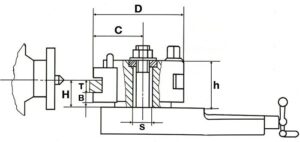

| Model | E5 |
| Lathe Centre Height | 100 – 200 mm |
| Lathe Swing | 200 – 400 mm |
| B (Height) | 12 mm |
| C (Width) | 66 mm |
| D (Diameter) | 132 mm |
| H (Adjustable Range) | 32 – 52 mm |
| h (Block Height) | 68 mm |
| S (Shank Size) | 20 mm |
| T (Shank Size) | 20 mm |
| Number of Holders | 4 Holders Included |
| Nett Weight | 6.2 kg |
Suitable for 100 – 200mm Lathe Centre Height (lathe swing 200 to 400mm)
Price $600+GST
